SKU: 53306+U306-MB

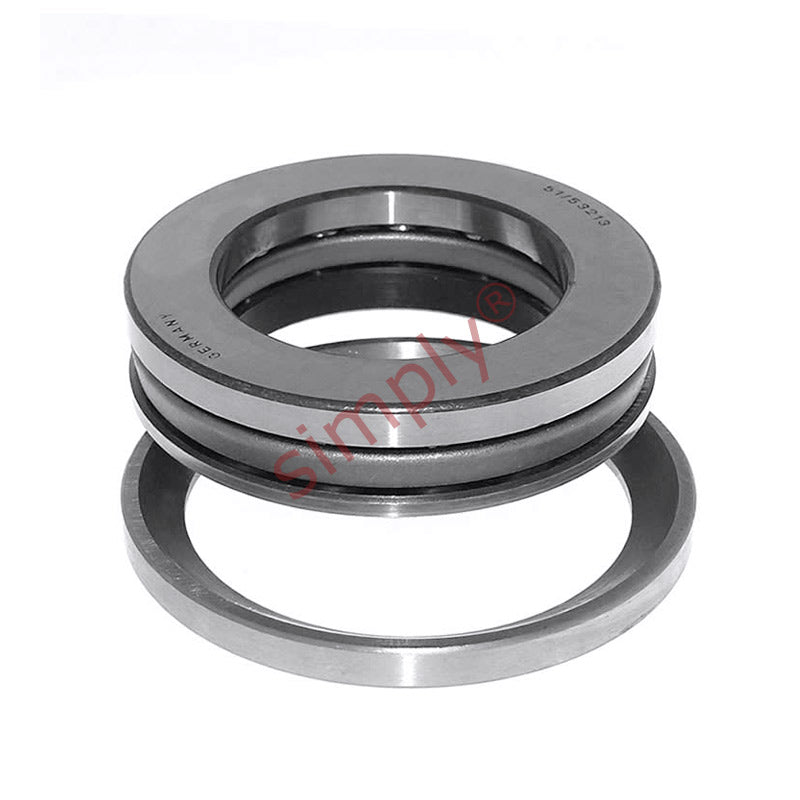

53306 Major Brand Single Thrust Ball Bearing with Spherical Housing Seat U306 30x60x25mm
- Regular price
- $76.48 ex VAT
- Sale price
- $76.48
- Regular price
-
Not in stock
Quantity Price Breaks
10
$68.07
19
$64.24
29
$63.48
39
$62.71
49
$61.95
74
$61.18
99
$57.36
199
$56.60
249
$55.83
499
$55.07
999
$53.54
SKU:
53306+U306-MB
53306 Major Brand Single Thrust Ball Bearing with Spherical Housing Seat U306 30x60x25mm
- Regular price
- $76.48 ex VAT
- Sale price
- $76.48
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 30mm |
| D | = | 60mm |
| H1 | = | 25mm |
| Dynamic load C | = | 37.7 kN |
| Static load Co | = | 71 kN |
| Fatigue load limit Pu | = | 2.65 kN |
| Minimum load factor A | = | 0.026 |
| Reference speed | = | 3800 rpm |
| Limiting Speed | = | 5300 rpm |
| Weight | = | 0.33 kg |
| Seating Washer | = | U306 |
| d1 | = | 60mm |
| D1 | = | 32mm |
| D2 | = | 45mm |
| D3 | = | 62mm |
| H | = | 22.6mm |
| C | = | 7mm |
| R | = | 50mm |
| s | = | 22mm |
| r1r2 min | = | 1mm |
| da max | = | 48mm |
| Da max | = | 45mm |
| ra max | = | 1mm |
