SKU: 53307+U307-MB

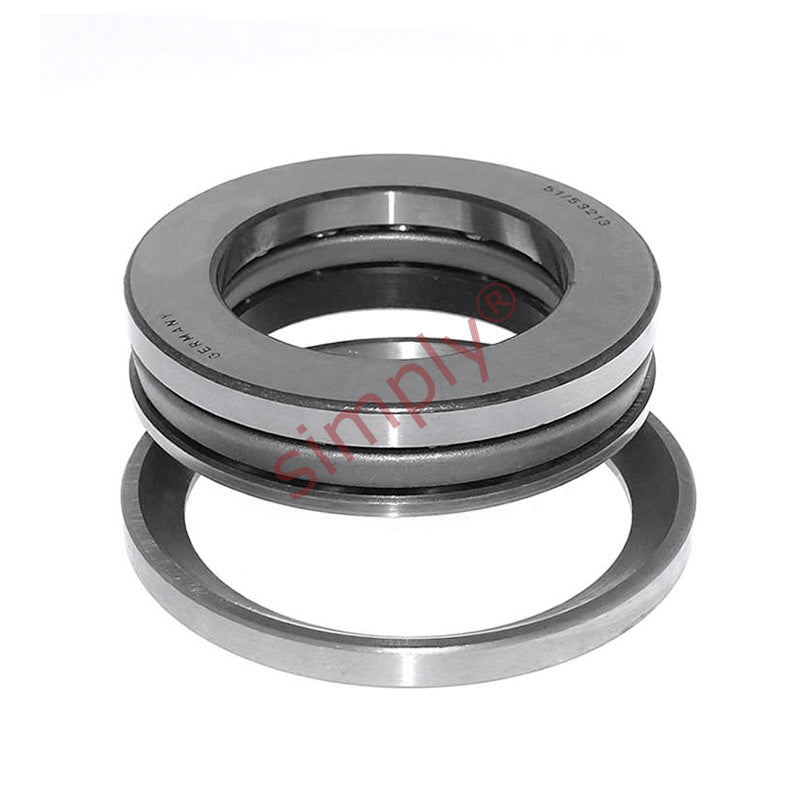

53307 Budget Single Thrust Ball Bearing with Spherical Housing Seat U307 35x68x28mm
- Regular price
- $47.74 ex VAT
- Sale price
- $47.74
- Regular price
-
Not in stock
Quantity Price Breaks
10
$42.49
19
$40.10
29
$39.62
39
$39.15
49
$38.67
74
$38.19
99
$35.81
199
$35.33
249
$34.85
499
$34.37
999
$33.42
SKU:
53307+U307-MB
53307 Budget Single Thrust Ball Bearing with Spherical Housing Seat U307 35x68x28mm
- Regular price
- $47.74 ex VAT
- Sale price
- $47.74
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 35mm |
| D | = | 68mm |
| H1 | = | 28mm |
| Dynamic load C | = | 49.4 kN |
| Static load Co | = | 96.5 kN |
| Fatigue load limit Pu | = | 3.55 kN |
| Minimum load factor A | = | 0.048 |
| Reference speed | = | 3200 rpm |
| Limiting Speed | = | 4500 rpm |
| Weight | = | 0.46 kg |
| Seating Washer | = | U307 |
| d1 | = | 68mm |
| D1 | = | 37mm |
| D2 | = | 52mm |
| D3 | = | 72mm |
| H | = | 25.6mm |
| C | = | 7.5mm |
| R | = | 56mm |
| s | = | 24mm |
| r1r2 min | = | 1mm |
| da max | = | 55mm |
| Da max | = | 52mm |
| ra max | = | 1mm |
