SKU: 6216-2Z-HT-330

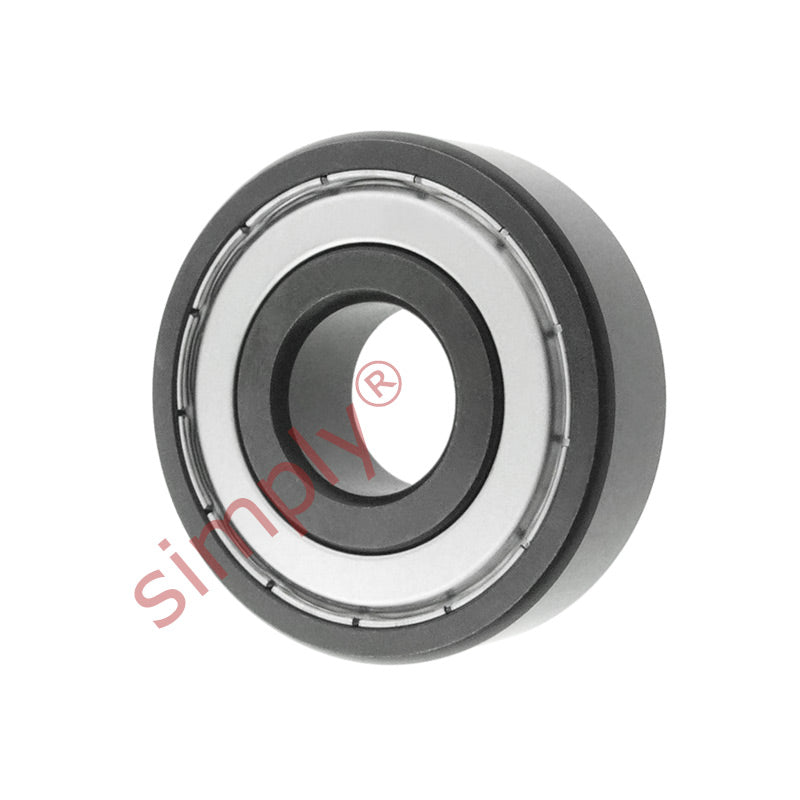

6216ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 80x140x26mm Max 50rpm
- Regular price
- $73.72 ex VAT
- Sale price
- $73.72
- Regular price
-
Not in stock
Quantity Price Breaks
3
$65.61
5
$61.92
10
$61.19
15
$60.45
20
$59.71
30
$58.98
40
$55.29
50
$54.55
60
$53.82
75
$53.08
100
$51.60
SKU:
6216-2Z-HT-330
6216ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 80x140x26mm Max 50rpm
- Regular price
- $73.72 ex VAT
- Sale price
- $73.72
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 80mm |
| Outside diameter D | = | 140mm |
| Width W | = | 26mm |
| Static load max | = | 30.3 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 50 rpm |
| Weight | = | 1400 g |
