CC173 Major Brand Hexagon Section Double Sided V-Belt

SKU: CC.173.MB

CC173 Major Brand Hexagon Section Double Sided V-Belt

$228.88 ex VAT
$228.88
ex VAT
Not in stock

Quantity Price Breaks

10 $203.70
19 $192.26
29 $189.97
39 $187.68
49 $185.39
74 $183.10
99 $171.66
199 $169.37
249 $167.08
499 $164.79
999 $160.22
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
CC173 Major Brand Hexagon Section Double Sided V-Belt
SKU: CC.173.MB

CC173 Major Brand Hexagon Section Double Sided V-Belt

$228.88 ex VAT
$228.88
ex VAT

Description

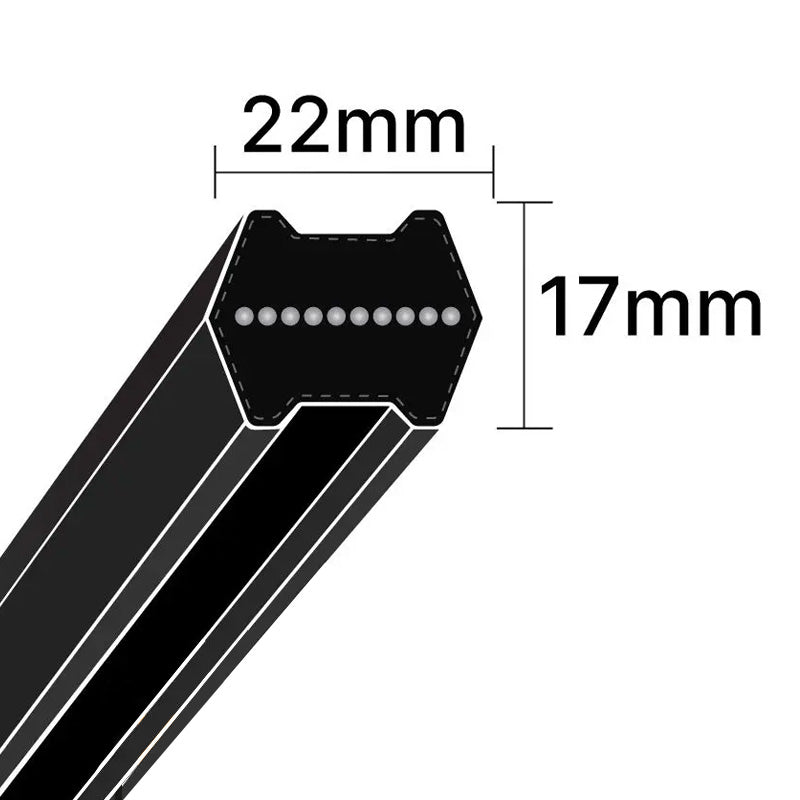

Hexagon profile V-Belts: Hex belts, also known as double V-belts, are designed for use on drives with one or more reverse bends. They usually transmit power from both sides of the belt. To meet the multiple-bend and dual-power requirements, we build Hex belts with rugged Vytacord tension members. They deliver maximum strength with minimum elongation. They also work with all the other quality materials that are a part of our Hex belts to deliver maximum performance over a long, trouble-free life. Hex belts are available in AA, BB, and CC cross sections.
Applications: Used on drives having one or more reverse bends and usually where power must be transmitted to or from the belt in both the usual and reverse positions.
Benefits: Dual-sided classical profile, High-strength Vytacord® tensile members, Engineered rubber compound-impregnated, Engineered rubber cushion and insulation, Oil, heat, ozone, and abrasion resistant envelope, Static conductive

Technical

Reference Length = 4394mm = 173 inch
Datum Length = 4465mm = 175.79 inch
