CC255 Major Brand Hexagon Section Double Sided V-Belt

SKU: CC.255.MB

CC255 Major Brand Hexagon Section Double Sided V-Belt

$308.70 ex VAT
$308.70
ex VAT
Not in stock

Quantity Price Breaks

10 $274.74
19 $259.31
29 $256.22
39 $253.13
49 $250.05
74 $246.96
99 $231.53
199 $228.44
249 $225.35
499 $222.26
999 $216.09
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
CC255 Major Brand Hexagon Section Double Sided V-Belt
SKU: CC.255.MB

CC255 Major Brand Hexagon Section Double Sided V-Belt

$308.70 ex VAT
$308.70
ex VAT

Description

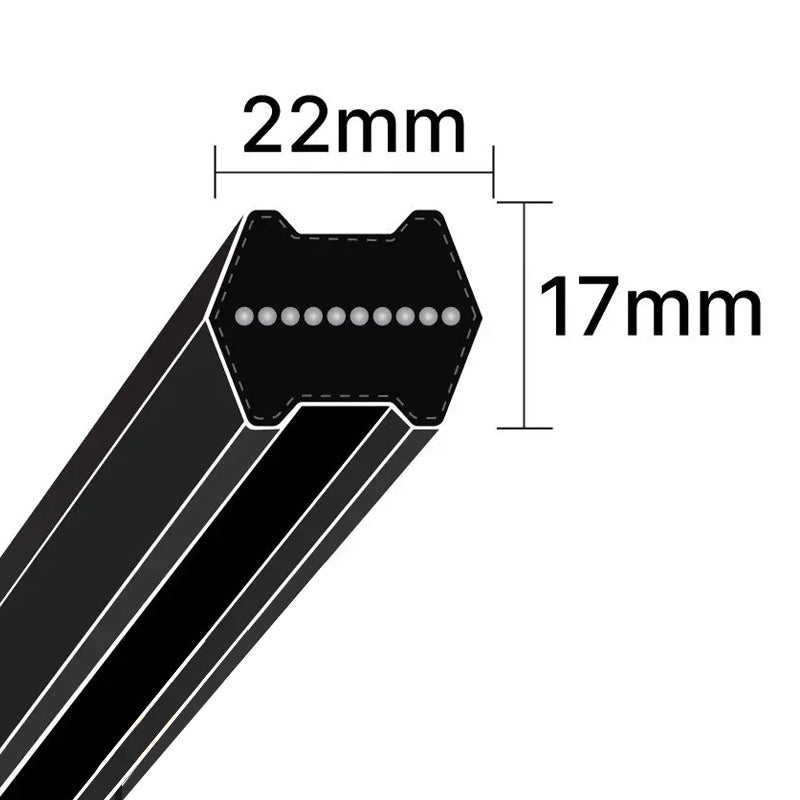

Hexagon profile V-Belts: Hex belts, also known as double V-belts, are designed for use on drives with one or more reverse bends. They usually transmit power from both sides of the belt. To meet the multiple-bend and dual-power requirements, we build Hex belts with rugged Vytacord tension members. They deliver maximum strength with minimum elongation. They also work with all the other quality materials that are a part of our Hex belts to deliver maximum performance over a long, trouble-free life. Hex belts are available in AA, BB, and CC cross sections.
Applications: Used on drives having one or more reverse bends and usually where power must be transmitted to or from the belt in both the usual and reverse positions.
Benefits: Dual-sided classical profile, High-strength Vytacord® tensile members, Engineered rubber compound-impregnated, Engineered rubber cushion and insulation, Oil, heat, ozone, and abrasion resistant envelope, Static conductive

Technical

Reference Length = 6477mm = 255 inch
Datum Length = 6500mm = 255.91 inch
