CC390 Major Brand Hexagon Section Double Sided V-Belt

SKU: CC.390.MB

CC390 Major Brand Hexagon Section Double Sided V-Belt

$534.31 ex VAT
$534.31
ex VAT
Not in stock

Quantity Price Breaks

10 $475.54
19 $448.82
29 $443.48
39 $438.13
49 $432.79
74 $427.45
99 $400.73
199 $395.39
249 $390.05
499 $384.70
999 $374.02
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
CC390 Major Brand Hexagon Section Double Sided V-Belt
SKU: CC.390.MB

CC390 Major Brand Hexagon Section Double Sided V-Belt

$534.31 ex VAT
$534.31
ex VAT

Description

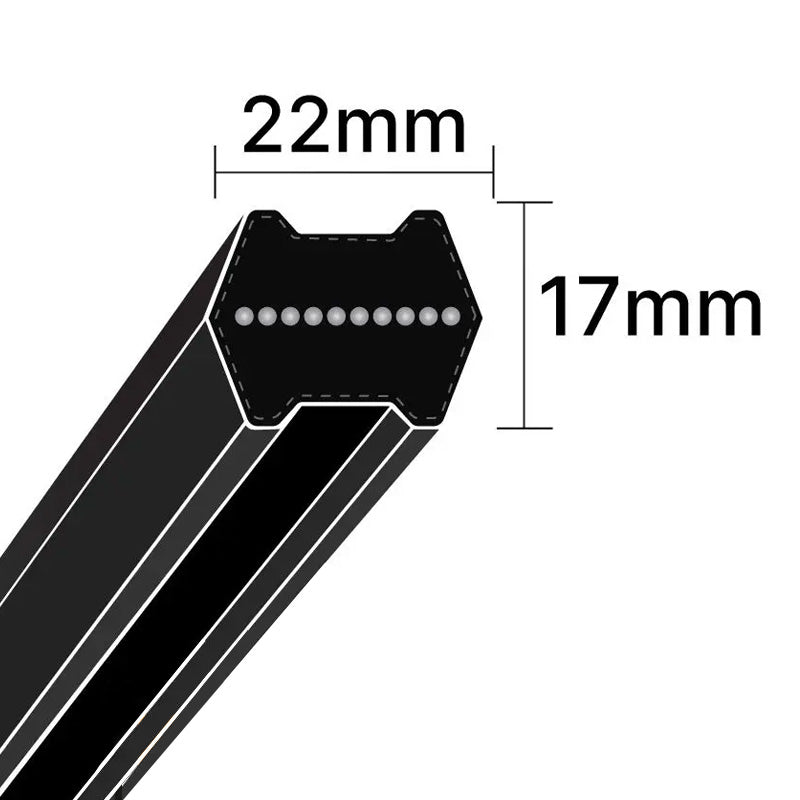

Hexagon profile V-Belts: Hex belts, also known as double V-belts, are designed for use on drives with one or more reverse bends. They usually transmit power from both sides of the belt. To meet the multiple-bend and dual-power requirements, we build Hex belts with rugged Vytacord tension members. They deliver maximum strength with minimum elongation. They also work with all the other quality materials that are a part of our Hex belts to deliver maximum performance over a long, trouble-free life. Hex belts are available in AA, BB, and CC cross sections.
Applications: Used on drives having one or more reverse bends and usually where power must be transmitted to or from the belt in both the usual and reverse positions.
Benefits: Dual-sided classical profile, High-strength Vytacord® tensile members, Engineered rubber compound-impregnated, Engineered rubber cushion and insulation, Oil, heat, ozone, and abrasion resistant envelope, Static conductive

Technical

Reference Length = 9906mm = 390 inch
Datum Length = 9930mm = 390.94 inch
