SKU: CCNBE-56-SB

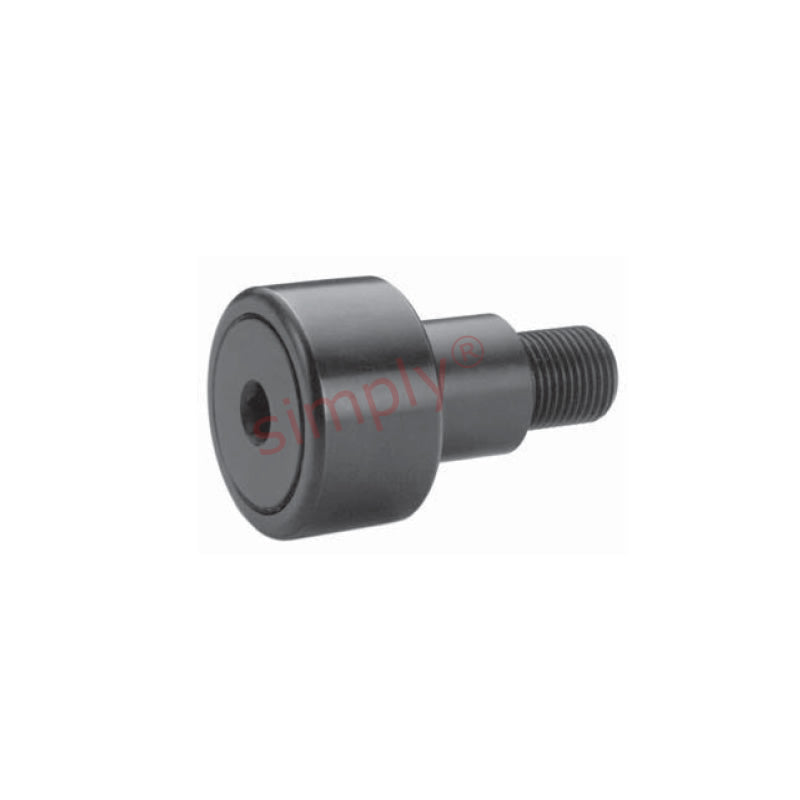

Major Brand CCNBE56SB Hex Head Crowned Cam Follower with Eccentric Stud 1-3/4 inch Outside Diameter
- Regular price
- $107.49 ex VAT
- Sale price
- $107.49
- Regular price
-
Not in stock
Quantity Price Breaks
3
$95.67
4
$90.29
9
$89.22
19
$88.14
29
$87.07
39
$85.99
49
$80.62
59
$79.54
249
$78.47
499
$77.39
999
$75.24
SKU:
CCNBE-56-SB
Major Brand CCNBE56SB Hex Head Crowned Cam Follower with Eccentric Stud 1-3/4 inch Outside Diameter
- Regular price
- $107.49 ex VAT
- Sale price
- $107.49
- Regular price
-
Description
|
Cam Follower with Hex Head and Crowned O.D: Designed for applications where holding close tolerances of the mounting holes may prove difficult. The eccentric bushing is made of cold drawn steel so you can drill or dowel through the housing and into the stud for permanent locking. The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
Technical
| A | = | 1.75 inch |
| B | = | 1 inch |
| C | = | 0.875 inch |
| D | = | 1 inch |
| E | = | 1.75 inch |
| F | = | 0.875 inch |
| Thread class 2A G | = | 3/4-16 UNF |
| H | = | 3/16 inch |
| Min boss diameter | = | 1-3/64 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 7920 lbs |
| Basic dynamic rating | = | 6385 lbs |
