SKU: CNB-112

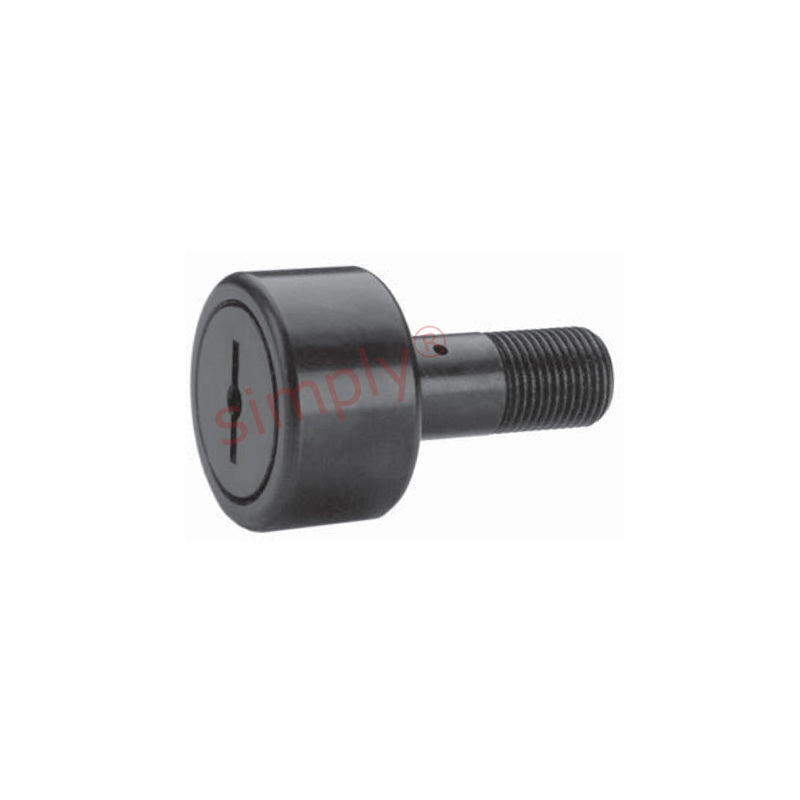

Major Brand CNB112 Slotted Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- $323.18 ex VAT
- Sale price
- $323.18
- Regular price
-
Not in stock
Quantity Price Breaks
3
$287.63
4
$271.47
9
$268.24
19
$265.01
29
$261.78
39
$258.54
49
$242.39
59
$239.15
249
$235.92
499
$232.69
999
$226.23
SKU:
CNB-112
Major Brand CNB112 Slotted Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- $323.18 ex VAT
- Sale price
- $323.18
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 3.5 inch |
| B | = | 2 inch |
| C | = | 1.375 inch |
| D | = | 2.75 inch |
| E | = | 1.375 inch |
| Thread class 2A F | = | 1-3/8-12 UNF |
| G | = | 11/16 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-59/64 inch |
| Recommended bore | = | 1.375 inch |
| Recommended torque | = | 4200 lbf-in |
| Max static capacity | = | 31625 lbs |
| Basic dynamic rating | = | 22800 lbs |
