SKU: CNB-22-B

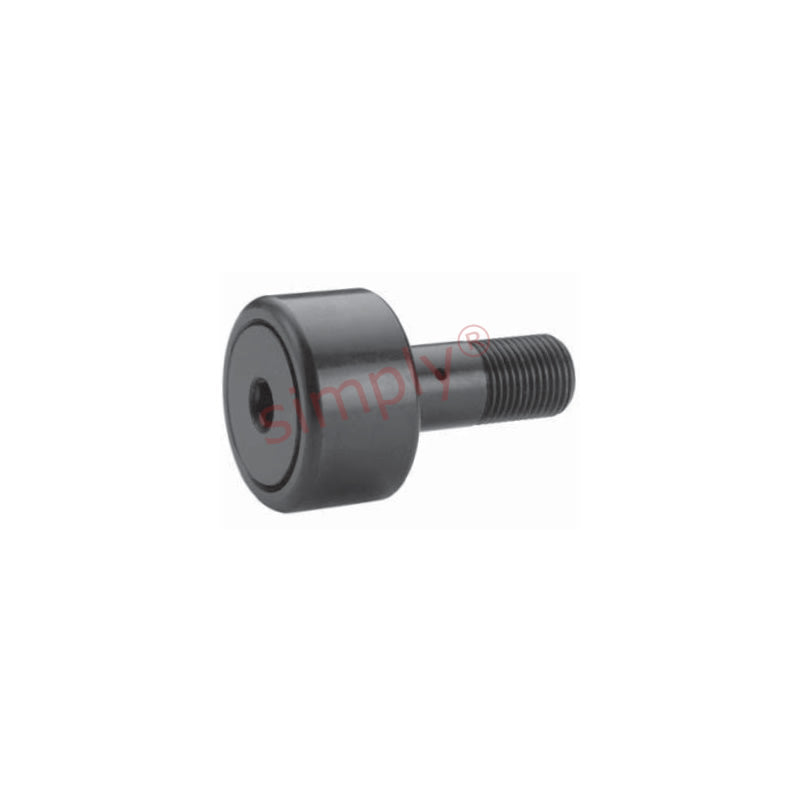

Major Brand CNB22B Hex Head Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- $48.01 ex VAT
- Sale price
- $48.01
- Regular price
-
Not in stock
Quantity Price Breaks
3
$42.73
4
$40.33
9
$39.85
19
$39.37
29
$38.89
39
$38.41
49
$36.01
59
$35.53
249
$35.05
499
$34.57
999
$33.61
SKU:
CNB-22-B
Major Brand CNB22B Hex Head Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- $48.01 ex VAT
- Sale price
- $48.01
- Regular price
-
Description
|
Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
Technical
| A | = | 0.6875 inch |
| B | = | 0.4375 inch |
| C | = | 0.25 inch |
| D | = | 0.75 inch |
| E | = | 0.312 inch |
| Thread class 2A F | = | 1/4-28 UNF |
| Min boss diameter | = | 23/64 inch |
| Recommended bore | = | 0.25 inch |
| Recommended torque | = | 35 lbf-in |
| Max static capacity | = | 1215 lbs |
| Basic dynamic rating | = | 955 lbs |
