SKU: CNB-80

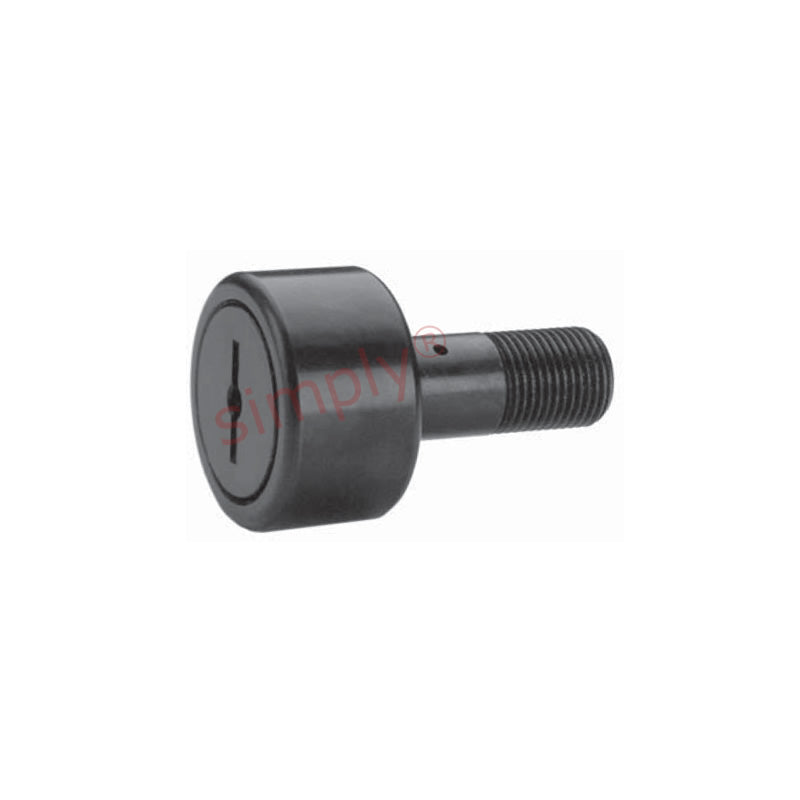

Major Brand CNB80 Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- $130.22 ex VAT
- Sale price
- $130.22
- Regular price
-
Not in stock
Quantity Price Breaks
3
$115.90
4
$109.38
9
$108.08
19
$106.78
29
$105.48
39
$104.18
49
$97.67
59
$96.36
249
$95.06
499
$93.76
999
$91.15
SKU:
CNB-80
Major Brand CNB80 Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- $130.22 ex VAT
- Sale price
- $130.22
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 2.5 inch |
| B | = | 1.5 inch |
| C | = | 1 inch |
| D | = | 2.25 inch |
| E | = | 1.125 inch |
| Thread class 2A F | = | 1-14 UNS |
| G | = | 9/16 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 15/16 inch |
| Recommended bore | = | 1 inch |
| Recommended torque | = | 2250 lbf-in |
| Max static capacity | = | 16450 lbs |
| Basic dynamic rating | = | 11720 lbs |
