SKU: CNB-96

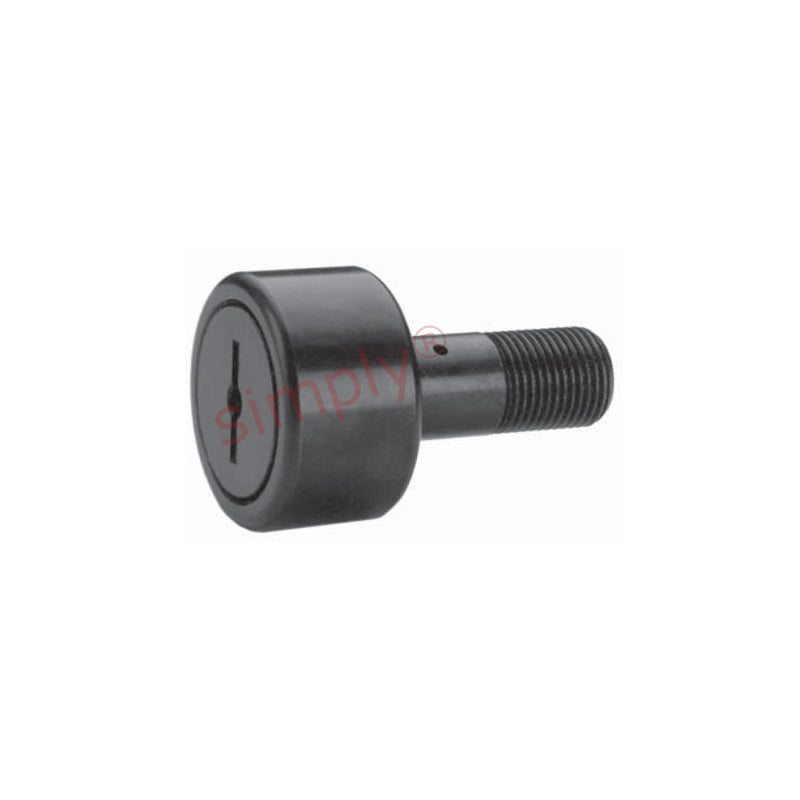

Major Brand CNB96 Slotted Cylindrical Cam Follower 3 inch Outside Diameter Allow 7-10 Days
- Regular price
- $223.74 ex VAT
- Sale price
- $223.74
- Regular price
-
Not in stock
Quantity Price Breaks
3
$199.13
4
$187.94
9
$185.70
19
$183.47
29
$181.23
39
$178.99
49
$167.81
59
$165.57
249
$163.33
499
$161.09
999
$156.62
SKU:
CNB-96
Major Brand CNB96 Slotted Cylindrical Cam Follower 3 inch Outside Diameter Allow 7-10 Days
- Regular price
- $223.74 ex VAT
- Sale price
- $223.74
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 3 inch |
| B | = | 1.75 inch |
| C | = | 1.25 inch |
| D | = | 2.5 inch |
| E | = | 1.25 inch |
| Thread class 2A F | = | 1-1/4-12 UNF |
| G | = | 5/8 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-3/4 inch |
| Recommended bore | = | 1.25 inch |
| Recommended torque | = | 3450 lbf-in |
| Max static capacity | = | 24910 lbs |
| Basic dynamic rating | = | 15720 lbs |
