SKU: CNBE-52-S

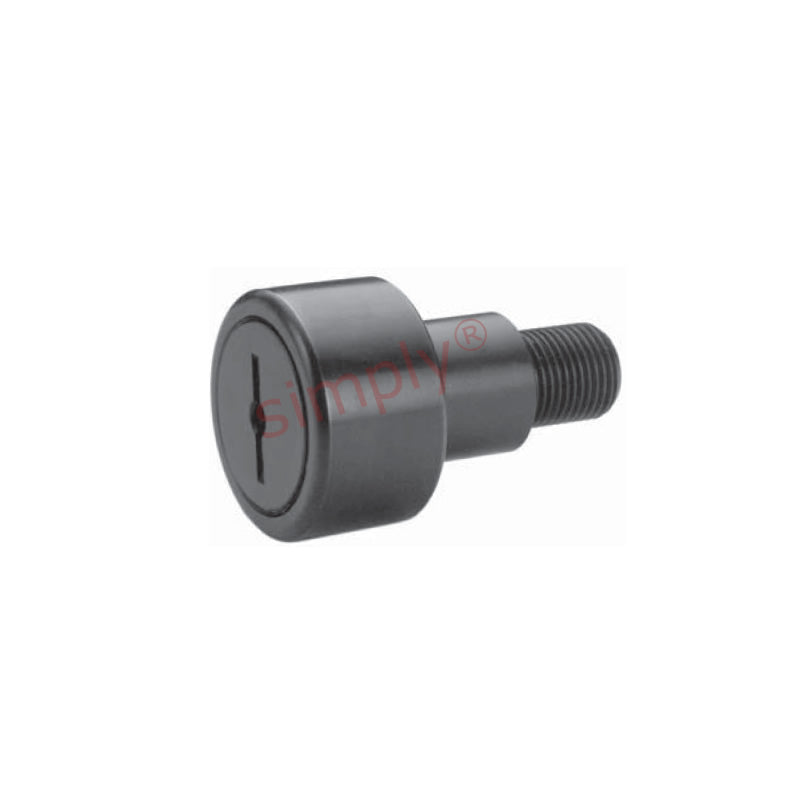

Major Brand CNBE52S Sealed and Slotted Cylindrical Cam Follower with Eccentric Stud 1-5/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $87.70 ex VAT
- Sale price
- $87.70
- Regular price
-
Not in stock
Quantity Price Breaks
3
$78.05
4
$73.67
9
$72.79
19
$71.91
29
$71.04
39
$70.16
49
$65.78
59
$64.90
249
$64.02
499
$63.14
999
$61.39
SKU:
CNBE-52-S
Major Brand CNBE52S Sealed and Slotted Cylindrical Cam Follower with Eccentric Stud 1-5/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $87.70 ex VAT
- Sale price
- $87.70
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head and Eccentric Stud: Designed for applications where holding close tolerances of the mounting holes may prove difficult. The eccentric bushing is made of cold drawn steel so you can drill or dowel through the housing and into the stud for permanent locking. The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 1.625 inch |
| B | = | 0.875 inch |
| C | = | 0.75 inch |
| D | = | 0.875 inch |
| E | = | 1.5 inch |
| F | = | 0.75 inch |
| Thread class 2A G | = | 5/8-18 UNF |
| H | = | 3/16 inch |
| Min boss diameter | = | 57/64 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 5640 lbs |
| Basic dynamic rating | = | 4840 lbs |
