SKU: CNBH-112

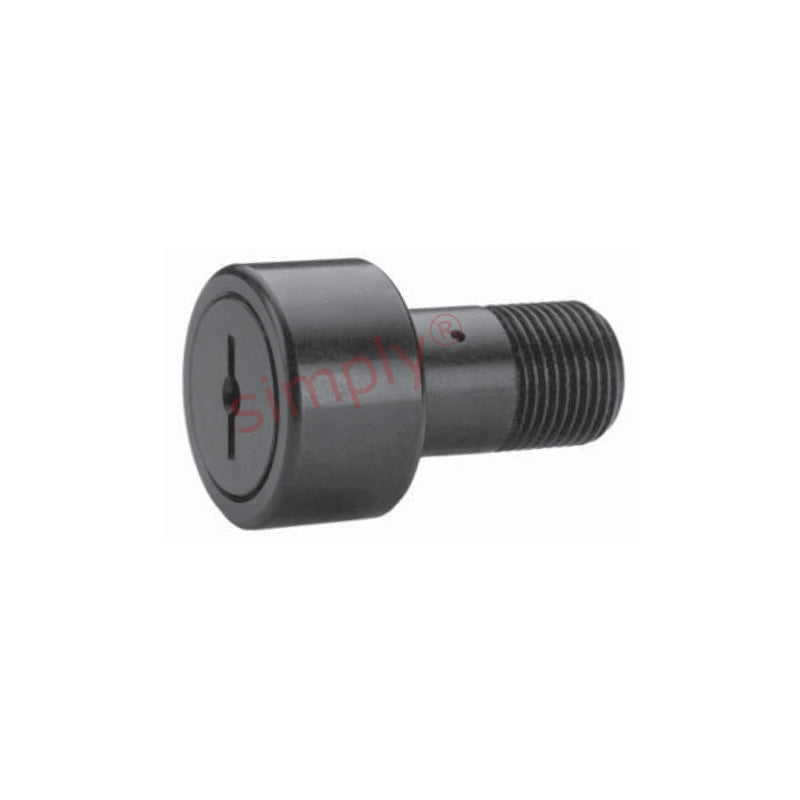

Major Brand CNBH112 Heavy Duty Slotted Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- $357.98 ex VAT
- Sale price
- $357.98
- Regular price
-
Not in stock
Quantity Price Breaks
3
$318.60
4
$300.70
9
$297.12
19
$293.54
29
$289.96
39
$286.38
49
$268.49
59
$264.91
249
$261.33
499
$257.75
999
$250.59
SKU:
CNBH-112
Major Brand CNBH112 Heavy Duty Slotted Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- $357.98 ex VAT
- Sale price
- $357.98
- Regular price
-
Description
|
Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 3.5 inch |
| B | = | 2 inch |
| C | = | 1.75 inch |
| D | = | 2.75 inch |
| E | = | 1.375 inch |
| Thread class 2A F | = | 1-3/4-12 UN |
| G | = | 11/16 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-59/64 inch |
| Recommended bore | = | 1.75 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 63250 lbs |
| Basic dynamic rating | = | 22800 lbs |
