SKU: CNBH-224-SB

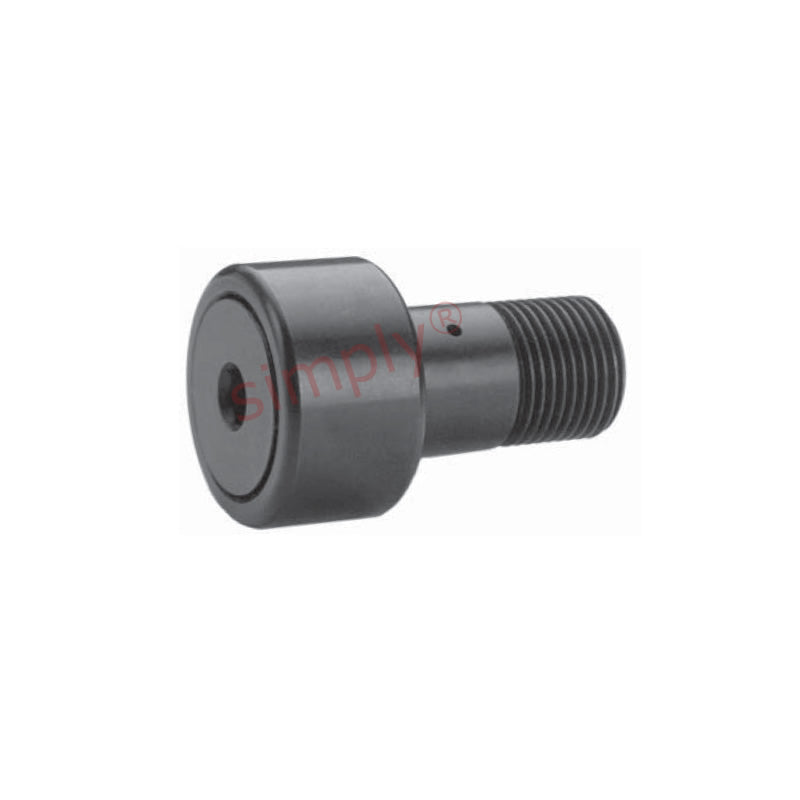

Major Brand CNBH224SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 7 inch Outside Diameter Allow 7-10 Days
- Regular price
- $5,723.27 ex VAT
- Sale price
- $5,723.27
- Regular price
-
Not in stock
Quantity Price Breaks
3
$5,093.71
4
$4,807.55
9
$4,750.31
19
$4,693.08
29
$4,635.85
39
$4,578.62
49
$4,292.45
59
$4,235.22
249
$4,177.99
499
$4,120.75
999
$4,006.29
SKU:
CNBH-224-SB
Major Brand CNBH224SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 7 inch Outside Diameter Allow 7-10 Days
- Regular price
- $5,723.27 ex VAT
- Sale price
- $5,723.27
- Regular price
-
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 7 inch |
| B | = | 3.75 inch |
| C | = | 3.5 inch |
| D | = | 7.687 inch |
| E | = | 4.125 inch |
| Thread class 2A F | = | 3-1/2-4 UNC |
| G | = | 1-1/4 inch |
| H | = | 3/16 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 5-3/16 inch |
| Recommended bore | = | 3.5 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 213860 lbs |
| Basic dynamic rating | = | 75380 lbs |
