SKU: CNBH-36

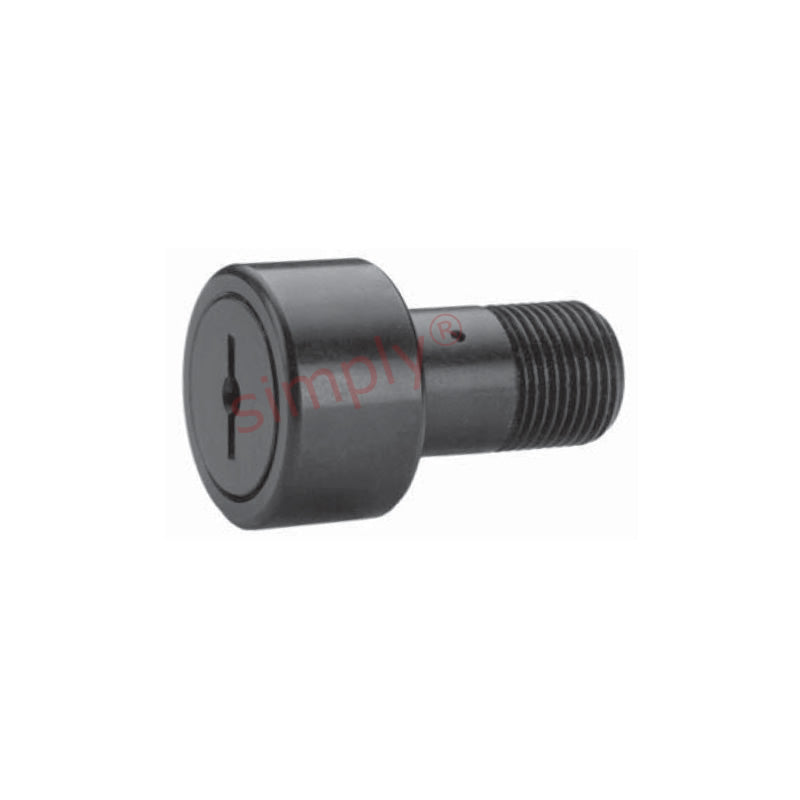

Major Brand CNBH36 Heavy Duty Slotted Cylindrical Cam Follower 1-1/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $48.01 ex VAT
- Sale price
- $48.01
- Regular price
-
Not in stock
Quantity Price Breaks
3
$42.73
4
$40.33
9
$39.85
19
$39.37
29
$38.89
39
$38.41
49
$36.01
59
$35.53
249
$35.05
499
$34.57
999
$33.61
SKU:
CNBH-36
Major Brand CNBH36 Heavy Duty Slotted Cylindrical Cam Follower 1-1/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $48.01 ex VAT
- Sale price
- $48.01
- Regular price
-
Description
|
Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.125 inch |
| B | = | 0.625 inch |
| C | = | 0.625 inch |
| D | = | 1 inch |
| E | = | 0.5 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 25/32 inch |
| Recommended bore | = | 0.625 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 6120 lbs |
| Basic dynamic rating | = | 2225 lbs |
