SKU: CNBH-52
Major Brand CNBH52 Heavy Duty Slotted Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $64.81 ex VAT
- Sale price
- $64.81
- Regular price
-
Not in stock
Quantity Price Breaks
3
$57.68
4
$54.44
9
$53.79
19
$53.14
29
$52.50
39
$51.85
49
$48.61
59
$47.96
249
$47.31
499
$46.66
999
$45.37
SKU:
CNBH-52
Major Brand CNBH52 Heavy Duty Slotted Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $64.81 ex VAT
- Sale price
- $64.81
- Regular price
-
Description
|

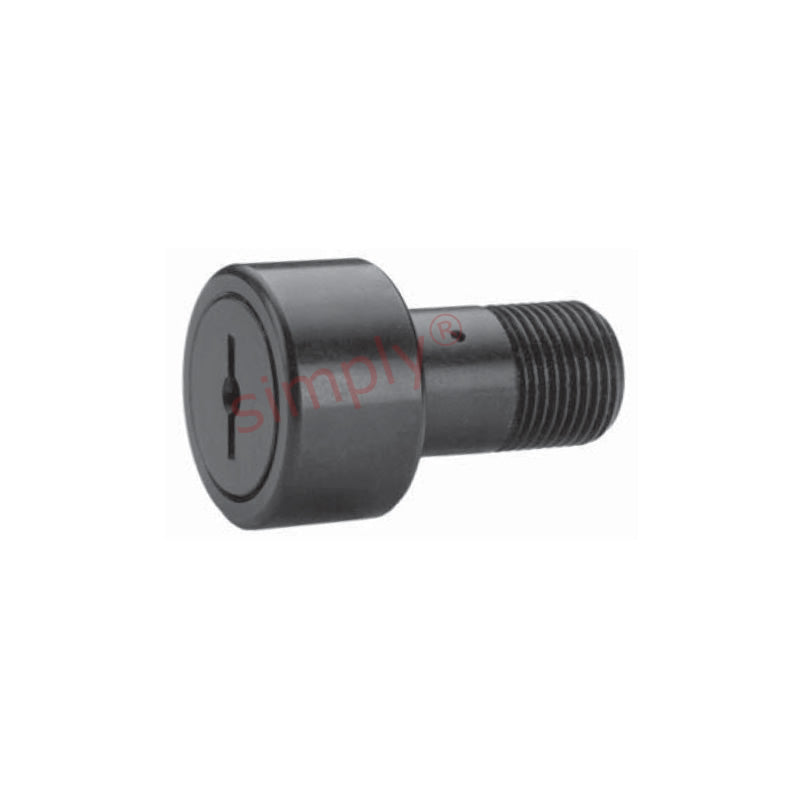

Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.625 inch |
| B | = | 0.875 inch |
| C | = | 0.875 inch |
| D | = | 1.5 inch |
| E | = | 0.75 inch |
| Thread class 2A F | = | 7/8-14 UNF |
| G | = | 3/8 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 13/32 inch |
| Recommended bore | = | 0.875 inch |
| Recommended torque | = | 1500 lbf-in |
| Max static capacity | = | 11280 lbs |
| Basic dynamic rating | = | 4840 lbs |
