SKU: CNBH-72-B
Major Brand CNBH72B Heavy Duty Hex Head Cylindrical Cam Follower 2-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- $119.58 ex VAT
- Sale price
- $119.58
- Regular price
-
Not in stock
Quantity Price Breaks
3
$106.43
4
$100.45
9
$99.25
19
$98.06
29
$96.86
39
$95.66
49
$89.69
59
$88.49
249
$87.29
499
$86.10
999
$83.71
SKU:
CNBH-72-B
Major Brand CNBH72B Heavy Duty Hex Head Cylindrical Cam Follower 2-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- $119.58 ex VAT
- Sale price
- $119.58
- Regular price
-
Description
|
Heavy Duty Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |

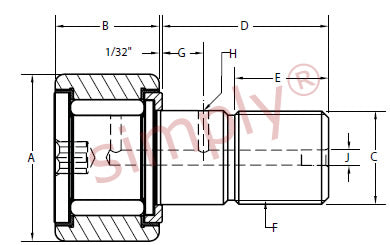

Technical
| A | = | 2.25 inch |
| B | = | 1.25 inch |
| C | = | 1.125 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 1-1/8-12 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/32 inch |
| Recommended bore | = | 1.125 inch |
| Recommended torque | = | 2800 lbf-in |
| Max static capacity | = | 21140 lbs |
| Basic dynamic rating | = | 8090 lbs |
