SKU: CNBH-88-B

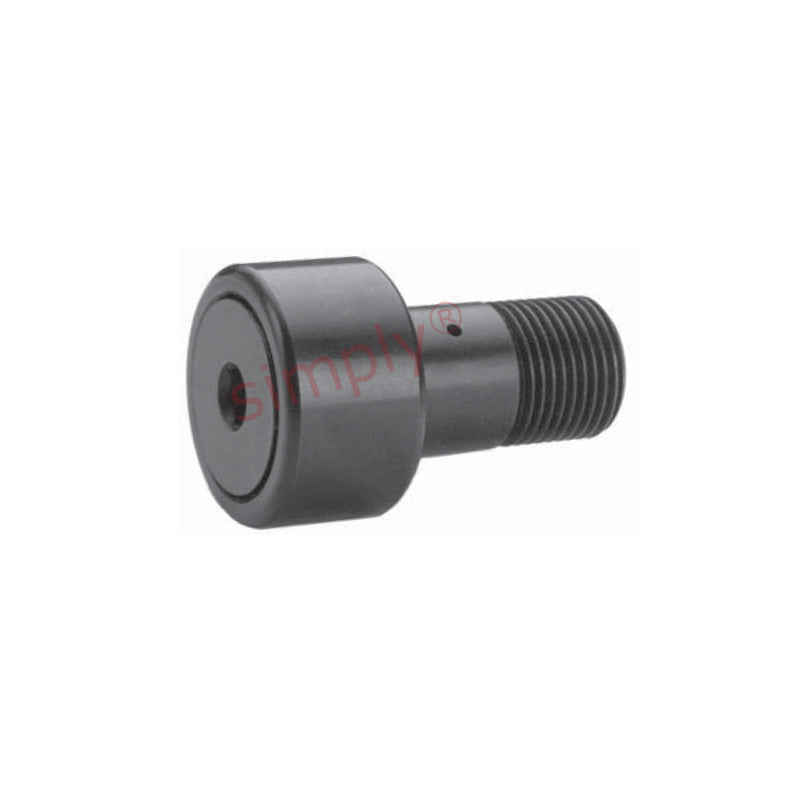

Major Brand CNBH88B Heavy Duty Hex Head Cylindrical Cam Follower 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- $182.59 ex VAT
- Sale price
- $182.59
- Regular price
-
Not in stock
Quantity Price Breaks
3
$162.51
4
$153.38
9
$151.55
19
$149.72
29
$147.90
39
$146.07
49
$136.94
59
$135.12
249
$133.29
499
$131.46
999
$127.81
SKU:
CNBH-88-B
Major Brand CNBH88B Heavy Duty Hex Head Cylindrical Cam Follower 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- $182.59 ex VAT
- Sale price
- $182.59
- Regular price
-
Description
|
Heavy Duty Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
Technical
| A | = | 2.75 inch |
| B | = | 1.5 inch |
| C | = | 1.25 inch |
| D | = | 2.25 inch |
| E | = | 1.125 inch |
| Thread class 2A F | = | 1-1/4-12 UNF |
| G | = | 9/16 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-11/16 inch |
| Recommended bore | = | 1.25 inch |
| Recommended torque | = | 3450 lbf-in |
| Max static capacity | = | 32900 lbs |
| Basic dynamic rating | = | 11720 lbs |
