SKU: DL13/50-50X80X41

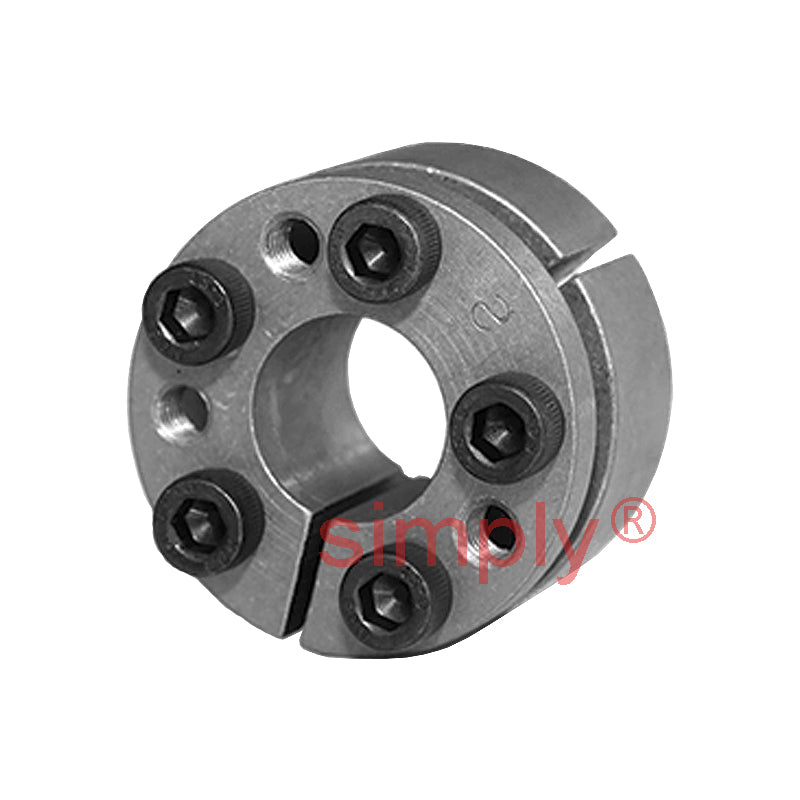

Major Branded DL13/50 Steel DRIVELOCK Bush 50x80x41mm - Allow 2-3 Days
- Regular price
- $29.18 ex VAT
- Sale price
- $29.18
- Regular price
-
Quantity Price Breaks
Major Branded DL13/50 Steel DRIVELOCK Bush 50x80x41mm - Allow 2-3 Days
- Regular price
- $29.18 ex VAT
- Sale price
- $29.18
- Regular price
-
Description
DRIVELOCK 13 Bushes: These bushes are highly durable, self-centering components designed for secure and precise shaft-hub connections in industrial applications. These bushes can accommodate high torque ranges, from 350 to 46,900 Nm, making them suitable for medium to heavy-duty use. They are available in a range of bore sizes, from 18mm to 180mm, providing flexibility for various machinery and equipment setups. Additionally, imperial bore sizes are available upon request, ensuring compatibility with different design standards. The self-centering feature helps maintain accurate alignment, reducing wear on components and extending the lifespan of the equipment.
Benefits: High torque capacity, self-centering design, versatility in bore sizes
Technical
| Material | = | Steel |
| d (h8) | = | 50mm |
| D | = | 80mm |
| M (screws) | = | M8 |
| L | = | 41mm |
| B | = | 33mm |
| Ts | = | 35 Nm |
| T | = | 2430 Nm |
| F | = | 98 kN |
| p | = | 158 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.8 kg |
