SKU: DL16/95-95X144X50

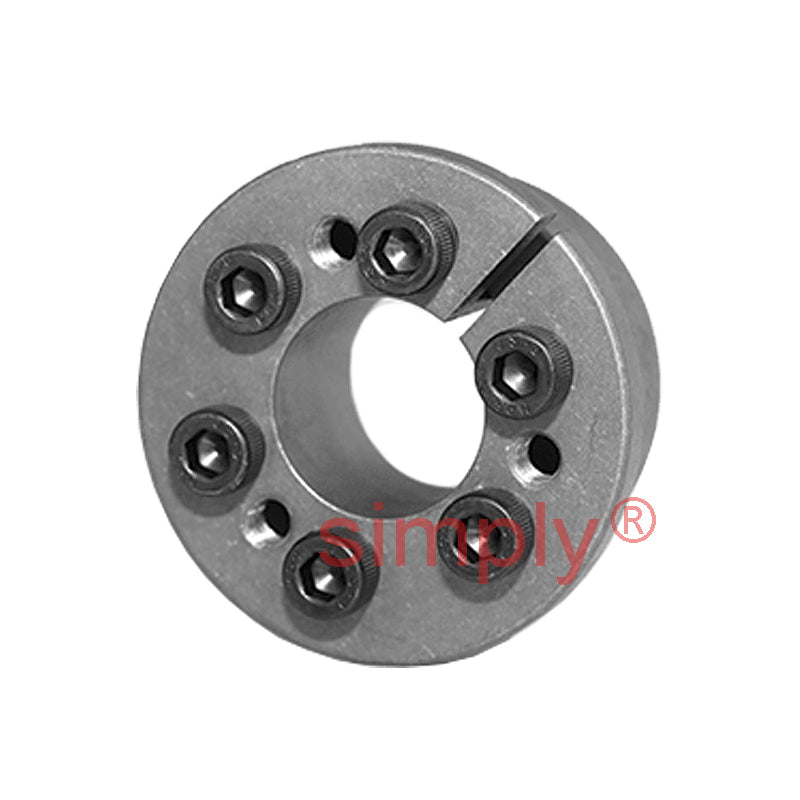

Major Branded DL16/95 Steel DRIVELOCK Bush 95x144x50mm - Allow 2-3 Days
- Regular price
- $57.24 ex VAT
- Sale price
- $57.24
- Regular price
-
Not in stock
Quantity Price Breaks
3
$50.94
5
$48.08
9
$47.51
19
$46.94
49
$46.36
74
$45.79
99
$42.93
199
$42.36
249
$41.79
499
$41.21
999
$40.07
SKU:
DL16/95-95X144X50
Major Branded DL16/95 Steel DRIVELOCK Bush 95x144x50mm - Allow 2-3 Days
- Regular price
- $57.24 ex VAT
- Sale price
- $57.24
- Regular price
-
Description
DRIVELOCK 16 Bushes: These bushes are self-centering components designed for secure shaft-hub connections in industrial applications. They handle high torques from 264 to 37,000 Nm, making them ideal for heavy-duty use. Available in bore sizes from 18mm to 180mm, with optional imperial sizes, these bushes offer flexibility for various shaft diameters. Their self-centering design ensures precise alignment, minimizing stress and vibration to enhance machinery performance and durability.
Benefits: High torque capacity, self-centering design, versatility in bore sizes
Technical
| Material | = | Steel |
| d (h8) | = | 95mm |
| D | = | 135mm |
| D1 | = | 144mm |
| M (screws) | = | M10 |
| L | = | 50mm |
| B | = | 40mm |
| A | = | 30mm |
| Ts | = | 83 Nm |
| T | = | 8190 Nm |
| F | = | 172 kN |
| p | = | 145 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 2.3 kg |
