SKU: DL70/45-45X75X55

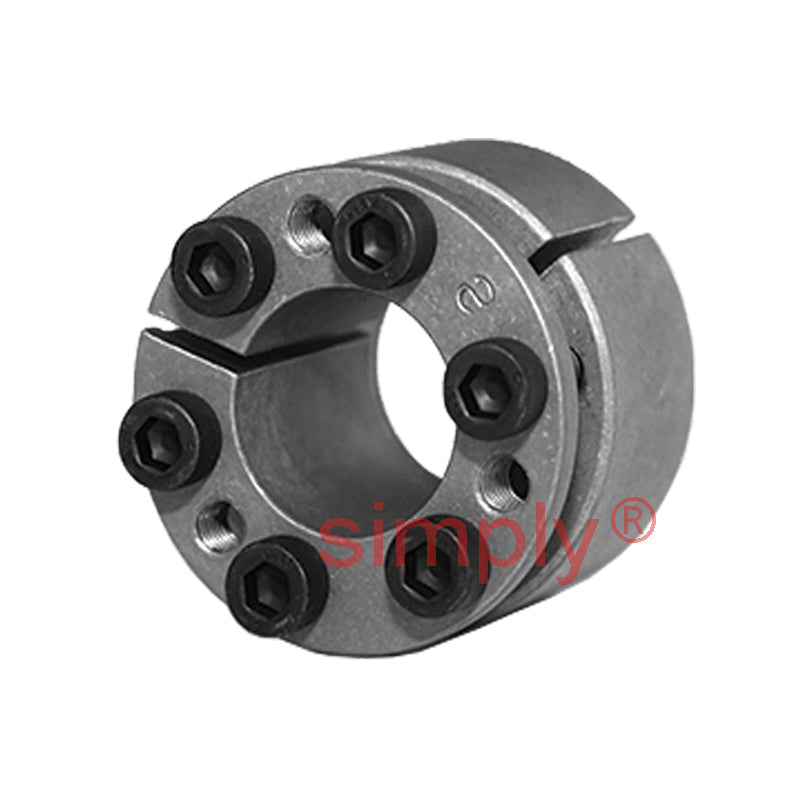

Major Branded DL70/45 Steel DRIVELOCK Bush 45x75x55mm - Allow 2-3 Days
- Regular price
- $29.15 ex VAT
- Sale price
- $29.15
- Regular price
-
Quantity Price Breaks
Major Branded DL70/45 Steel DRIVELOCK Bush 45x75x55mm - Allow 2-3 Days
- Regular price
- $29.15 ex VAT
- Sale price
- $29.15
- Regular price
-
Description
DRIVELOCK 70 Bushes: These bushes are self-centering components designed to deliver reliable performance for high-torque applications, handling loads ranging from 353 to 40,500 Nm. Their self-centering feature ensures precise alignment between the shaft and hub, reducing vibration and wear. These bushes accommodate a broad range of bore sizes, from 19mm to 180mm, with options for imperial sizes available upon request. They are ideal for heavy-duty machinery and equipment, providing a robust solution for demanding industrial environments.
Benefits: High torque capacity, self-centering accuracy, versatility in bore sizes
Technical
| Material | = | Steel |
| d (h8) | = | 45mm |
| D | = | 75mm |
| M (screws) | = | M8 |
| L | = | 55mm |
| B | = | 47mm |
| Ts | = | 41 Nm |
| T | = | 2304 Nm |
| F | = | 96 kN |
| p | = | 137 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 1 kg |
