SKU: SSI00625_6.4IN
1/16 inch Diameter Silver Steel Round Bar
- Regular price
- $4.47 ex VAT
- Sale price
- $4.47
- Regular price
-
Quantity Price Breaks

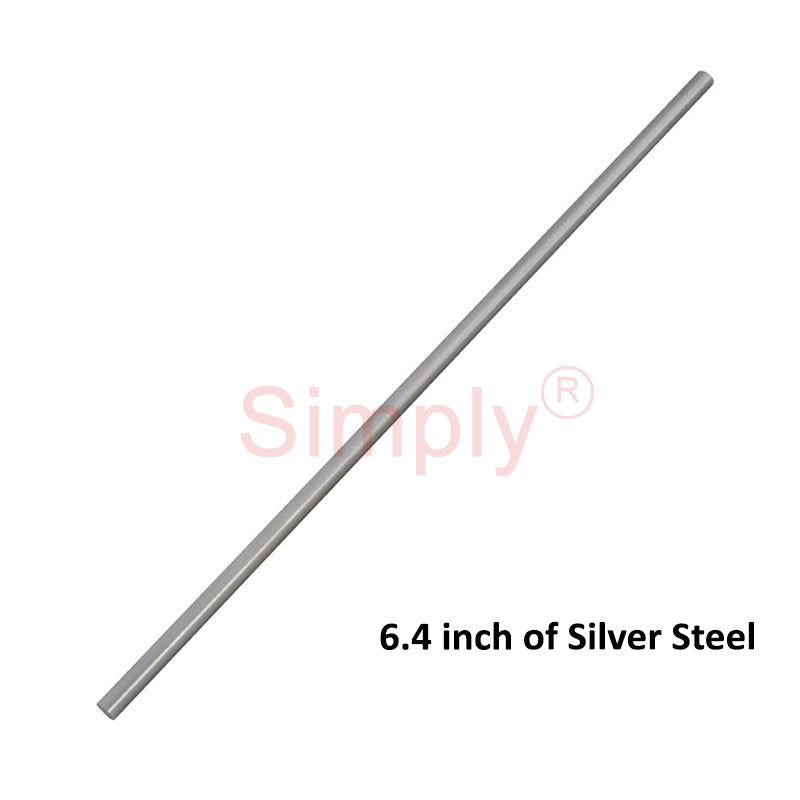

1/16 inch Diameter Silver Steel Round Bar
Length: 6.4 inch
- Regular price
- $4.47 - $8.26 ex VAT
- Sale price
- $4.47 - $8.26
- Regular price
-
Description
Silver Steel: Silver steel is precision round bar stock conforming to BS1407. It is manufactured in a centreless grinding process and can be machined, reworked and hardened as required. Each length is supplied with protective coating solution applied to it to ensure its finish is maintained.
Benefits: Silver Steel can be machined, softened, re-hardened and tempered by heat treatment processes.
Tolerance guide: Bars of less than 25mm diameter or 1 inch: Tolerances are stated as maximum +/- 0.015mm on diameter.
Bars between 25mm to 50mm or 1 inch to 2 inch: Tolerances are stated as maximum +/- 0.025mm on diameter.
Technical
| Diameter d | = | 1/16 inch |
| Length Approx h | = | 12.8 inch |
| Analysis Range (%) | = | Typical Analysis (%) |
| C. 95 / 1.25 | = | 1.13% |
| Si 0.40 max | = | 0.22% |
| Mn 0.25 / 0.45 | = | 0.37% |
| P 0.045 max | = | 0.014% |
| S 0.045 max | = | 0.018% |
| Cr 0.35 / 0.45 | = | 0.43% |
