SKU: 00SS316-JUB

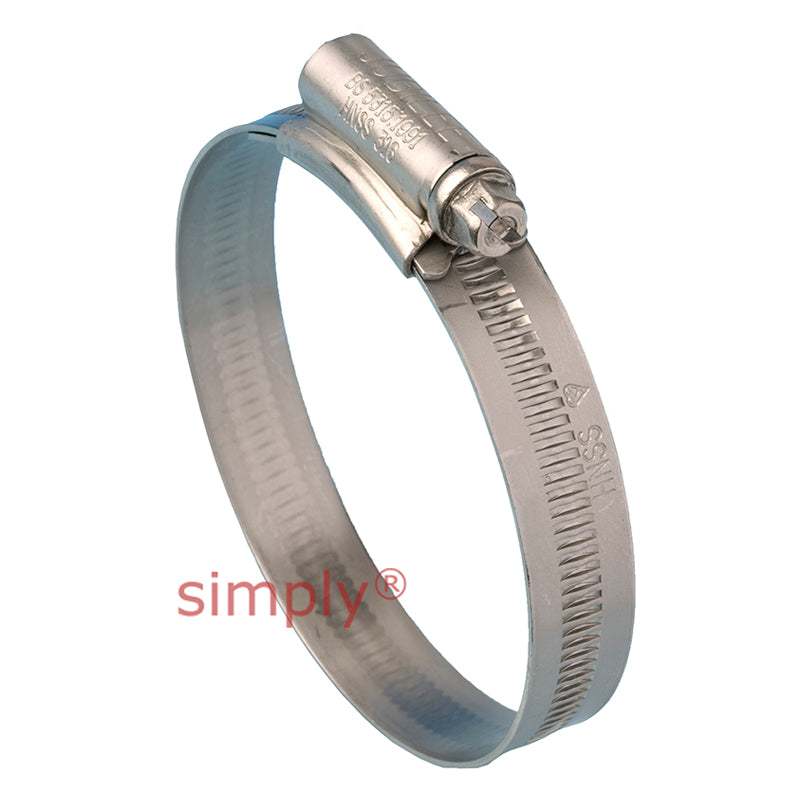

00SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 13mm - 20mm Band Width 9.9mm
- Regular price
- $6.39 ex VAT
- Sale price
- $6.39
- Regular price
-
In stock
Quantity Price Breaks
3
$5.69
5
$5.37
9
$5.30
19
$5.24
49
$5.18
74
$5.11
99
$4.79
199
$4.73
249
$4.66
499
$4.60
999
$4.47
SKU:
00SS316-JUB
00SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 13mm - 20mm Band Width 9.9mm
- Regular price
- $6.39 ex VAT
- Sale price
- $6.39
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 20 |
| Adjustment Range | = | 13mm - 20mm |
| Adjustment Range | = | 1/2 - 3/4 inch |
| Band Width (+/- 0.1) | = | 9.9mm |
| Band Thickness (+/- 0.1) | = | 0.762mm |
| Recommended Torque | = | 3.4Nm |
| Maximum Torque | = | 4.5Nm |
| Maximum Pressure | = | 203 Psi |
