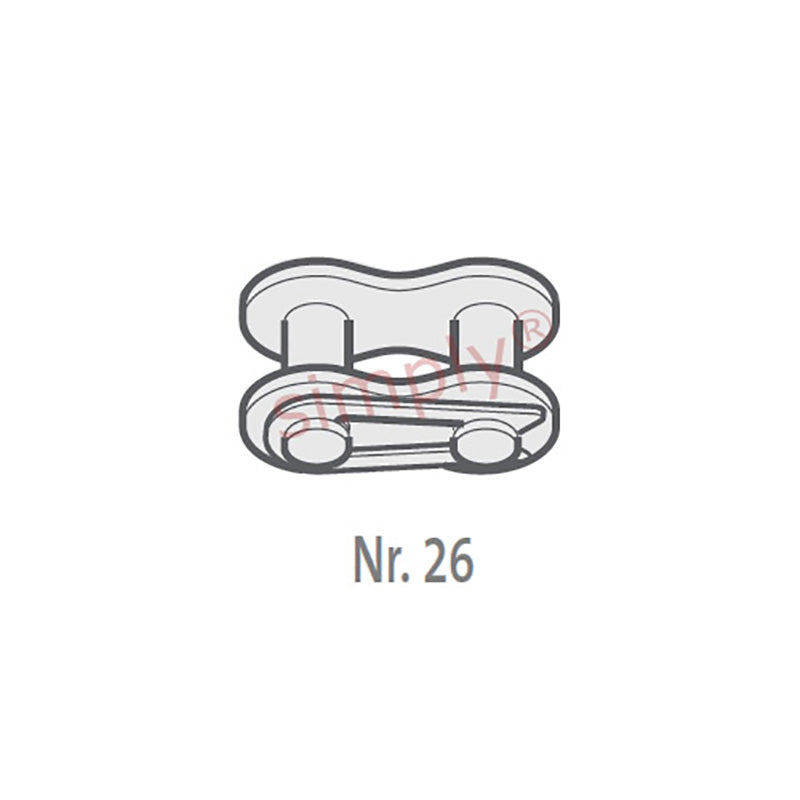

• Renold Blue Box 05B-1-NO26 BS Simplex Connecting Link With Spring Clip 5/16 inch Pitch
  • Renold
1 2

SKU: 05B-1-BB-NO26-RENOLD

Renold Blue Box 05B-1-NO26 BS Simplex Connecting Link With Spring Clip 5/16 inch Pitch

Renold Blue Box 05B-1-NO26 BS Simplex Connecting Link With Spring Clip 5/16 inch Pitch
$7.59 ex VAT
$7.59 ex VAT
Sale Sold out

In stock

Price Break
2+ $5.08
5+ $4.80
10+ $4.74
29+ $4.68
49+ $4.63
75+ $4.57
100+ $4.28
200+ $4.23
250+ $4.17
500+ $4.11
1000+ $4.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
7.93mm = 0.312 (5/16) inch
Technical
Pitch (A) 0.315 inch
Pitch (A) 7.93mm
Inside Width min (B) 3mm
Roller Diameter max (C) 5mm
Plate Height max (D) 7.11mm
Plate Width Inner max (E) 0.76mm
Plate Width Outer max (F) 0.76mm
Pin Diameter max (G) 2.31mm
Pin Length max (H1) 8.6mm
Connecting Link Extension max (J) 1.5mm
ISO606 Tensile Strength min 4400 N
Weight 0.2kg/m
