SKU: 05B-1-BB-NO30-RENOLD
Renold Blue Box 05B-1-NO30 BS Simplex Double Cranked Link 5/16 inch Pitch
- Regular price
- $12.22 ex VAT
- Sale price
- $12.22
- Regular price
-
In stock
Quantity Price Breaks
2
$10.88
5
$10.26
10
$10.14
29
$10.02
49
$9.90
75
$9.78
100
$9.17
200
$9.04
250
$8.92
500
$8.80
1000
$8.55
SKU:
05B-1-BB-NO30-RENOLD
Renold Blue Box 05B-1-NO30 BS Simplex Double Cranked Link 5/16 inch Pitch
- Regular price
- $12.22 ex VAT
- Sale price
- $12.22
- Regular price
-
Description

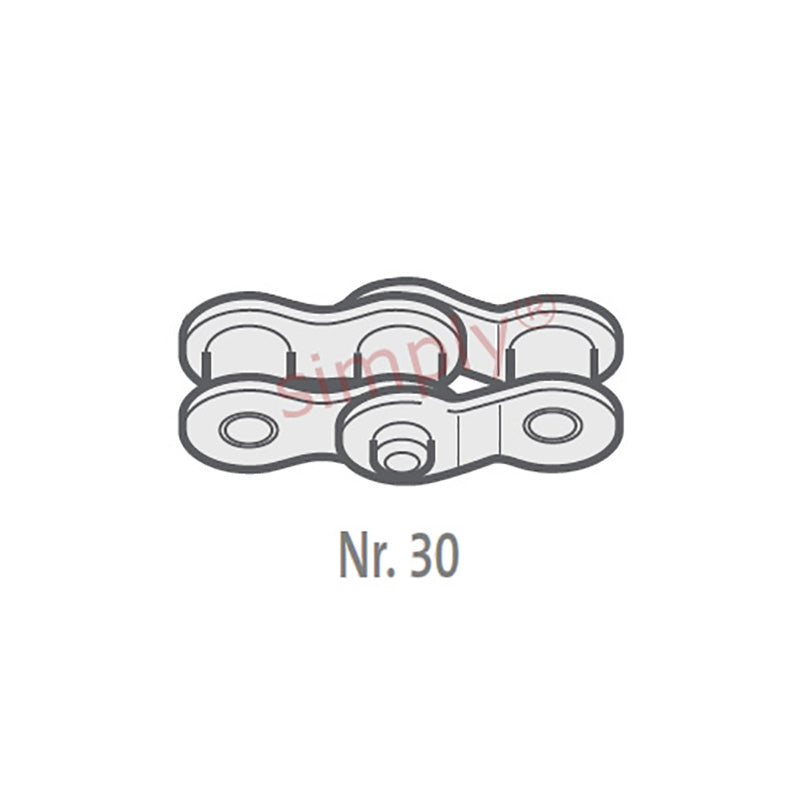

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.315 inch |
| Pitch (A) | = | 7.93mm |
| Inside Width min (B) | = | 3mm |
| Roller Diameter max (C) | = | 5mm |
| Plate Height max (D) | = | 7.11mm |
| Plate Width Inner max (E) | = | 0.76mm |
| Plate Width Outer max (F) | = | 0.76mm |
| Pin Diameter max (G) | = | 2.31mm |
| Pin Length max (H1) | = | 8.6mm |
| Connecting Link Extension max (J) | = | 1.5mm |
| ISO606 Tensile Strength min | = | 4400 N |
| Weight | = | 0.2kg/m |
