Renold SD 05B-1-NO30 BS Simplex Chain Double Cranked Link 8mm Pitch
Renold SD 05B-1-NO30 BS Simplex Chain Double Cranked Link 8mm Pitch
Out of stock
Description
Description

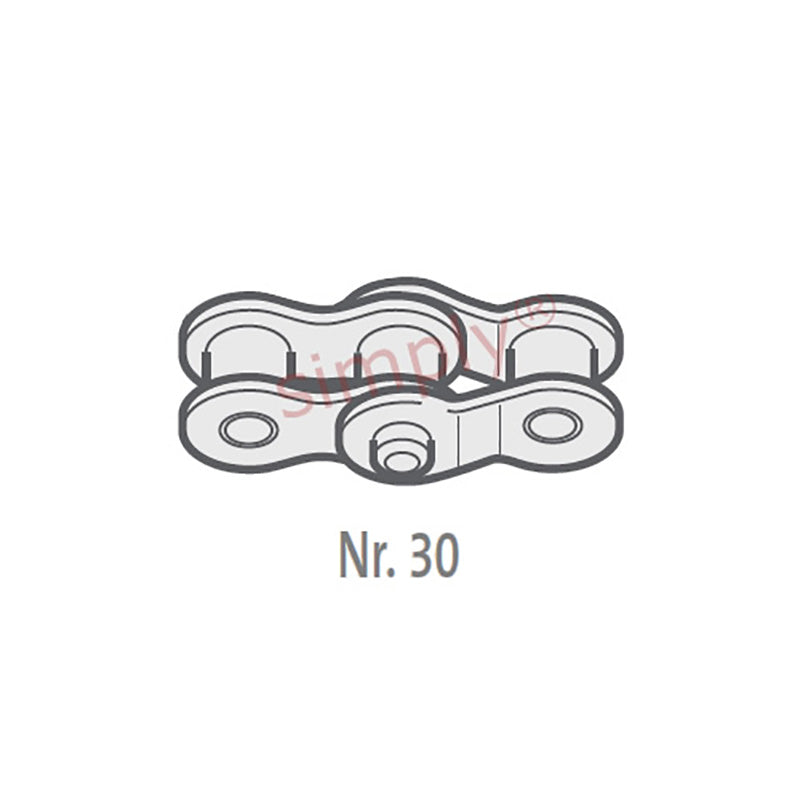

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 8mm
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 8mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.75mm |
| Plate Width Outer max (F) | 0.75mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H1) | 8mm |
| Connecting Link Extension max (J) | 0.9mm |
| ISO606 Tensile Strength min | 4400 N |
| Weight | 0.003kg/m |
