• Major Brand 05B-2 BS Duplex Roller Chain 5/16 inch Pitch 5 Metres
1 1

SKU: 05B-2-5MTR-MB

Major Brand 05B-2 BS Duplex Roller Chain 5/16 inch Pitch 5 Metres

Major Brand 05B-2 BS Duplex Roller Chain 5/16 inch Pitch 5 Metres
$81.64 ex VAT
$81.64 ex VAT
Sale Sold out

In stock

Price Break
2+ $54.68
5+ $51.61
10+ $50.99
29+ $50.38
49+ $49.76
75+ $49.15
100+ $46.08
200+ $45.46
250+ $44.85
500+ $44.23
1000+ $43.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
7.93mm = 0.312 (5/16) inch

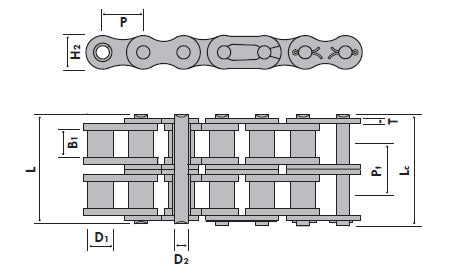

Technical
Pitch (P) 7.93mm = 0.312 (5/16) inch
Roller Diameter (D1 max) 5mm
Width between inner plates (B1 min) 3mm
Pin dia meter (D2 max) 2.31
mmPin length (L max) 13.9mm
Pin length (Lc max) 14.5mm
Inner plate depth (H2 max) 7.1mm
Plate thickness (T max) 0.8mm
Ultimate tensile strength (Q min) kN/LB 7.8/1773
Average tensile strength (Q0) kN 10.2
Transverse pitch (Pt) mm 5.64
Weight per meter (q) kg/m 0.33
