Major Brand 05B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 8mm Pitch
Major Brand 05B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 8mm Pitch
Regular price
$5.63
ex VAT
Regular price
Sale price
$5.63
ex VAT
Equivalent to: 05B-2-CL
In stock
Price Break
2+
$3.77
5+
$3.56
10+
$3.52
29+
$3.48
49+
$3.43
75+
$3.39
100+
$3.18
200+
$3.14
250+
$3.10
500+
$3.05
1000+
$2.97
Quantity
Couldn't load pickup availability
Description
Description

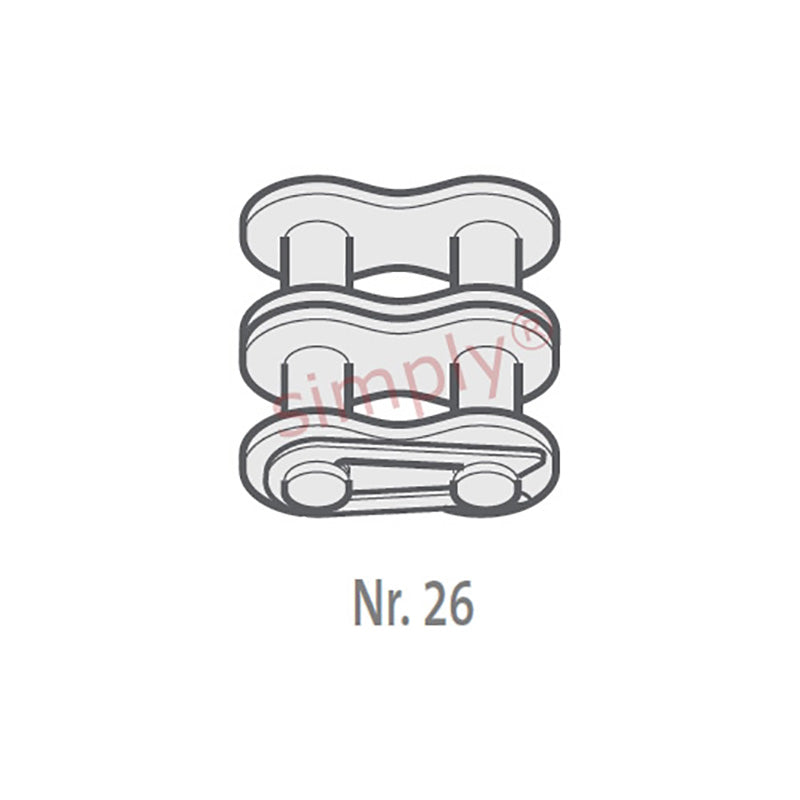

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 8mm
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 8mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.76mm |
| Plate Width Outer max (F) | 0.76mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H2) | 14.3mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 5.64mm |
| ISO606 Tensile Strength min | 7800 N |
| Weight | 0.36kg/m |
