SKU: 06B-1-ALPHA-25FT-SEDIS

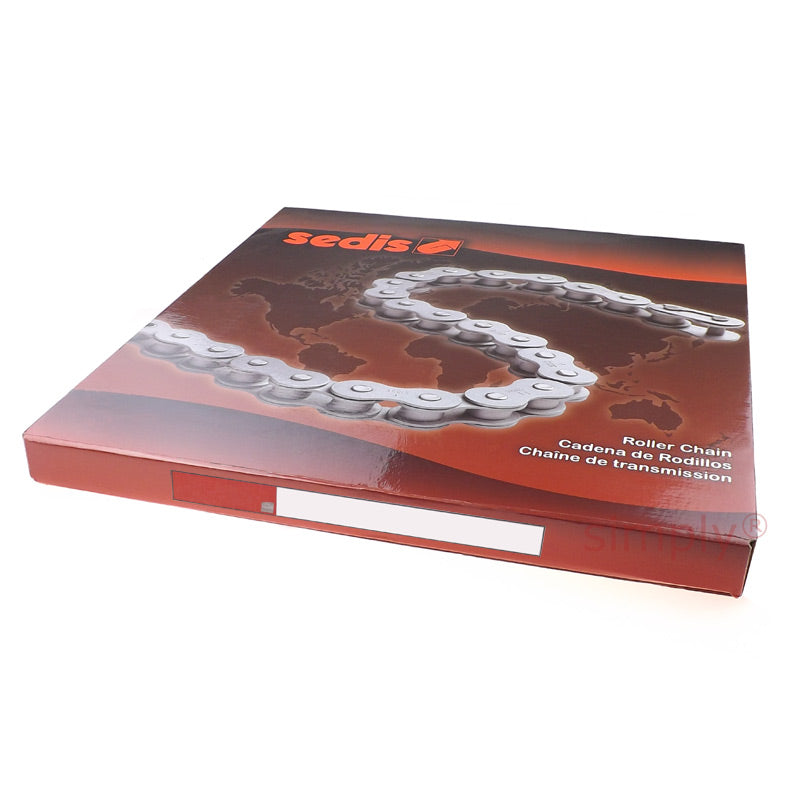

Sedis Alpha 06B-1 BS Simplex Roller Chain 25FT Length 3/8 inch Pitch - Allow 2-3 Days
Sedis Alpha 06B-1 BS Simplex Roller Chain 25FT Length 3/8 inch Pitch - Allow 2-3 Days
Regular price
$147.20
ex VAT
Regular price
Sale price
$147.20
ex VAT
In stock
Price Break
2+
$109.66
5+
$105.23
10+
$103.02
29+
$99.69
49+
$97.48
75+
$91.94
100+
$77.54
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Sedis Alpha Premium Chains - Resistance to Wear, Fatigue and Tensile Breaking: British and American standard chains with high resistance to wear. Chains are pre-tensioned at 30-45% of the breaking load. Chains 08B-16B/40 to 80 are lubricated with a new high performance wax offering an enhanced anti-wear protection which can work at temperatures from -30 Degrees Celsius to 130 Degrees Celsius. Other chains are pre-lubricated with initial plant lubrication. |
- Brand / Quality:
- Sedis - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical

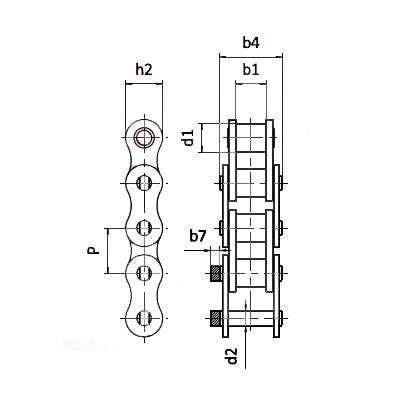

| Pitch P | 9.525mm |
|---|---|
| d1 max | 6.35mm |
| b1 min | 5.77mm |
| b4 max | 13.5mm |
| d2 max | 3.27mm |
| h2 max | 8.23mm |
| b7 min | 2.1mm |
| Ultimate Tensile Strength OSI 606 min | 8.9 kN |
| Ultimate Tensile Strength ALPHA Premium min | 9 kN |
| Ultimate Tensile Strength ALPHA Premium nom | 10.3 kN |
| Mass per meter | 0.4 kg |
