Renold SD 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
Renold SD 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
$6.56
ex VAT
Regular price
Sale price
$6.56
ex VAT
In stock
Price Break
2+
$4.40
5+
$4.15
10+
$4.10
29+
$4.05
49+
$4.00
75+
$3.95
100+
$3.71
200+
$3.66
250+
$3.61
500+
$3.56
1000+
$3.46
Quantity
Couldn't load pickup availability
Description
Description

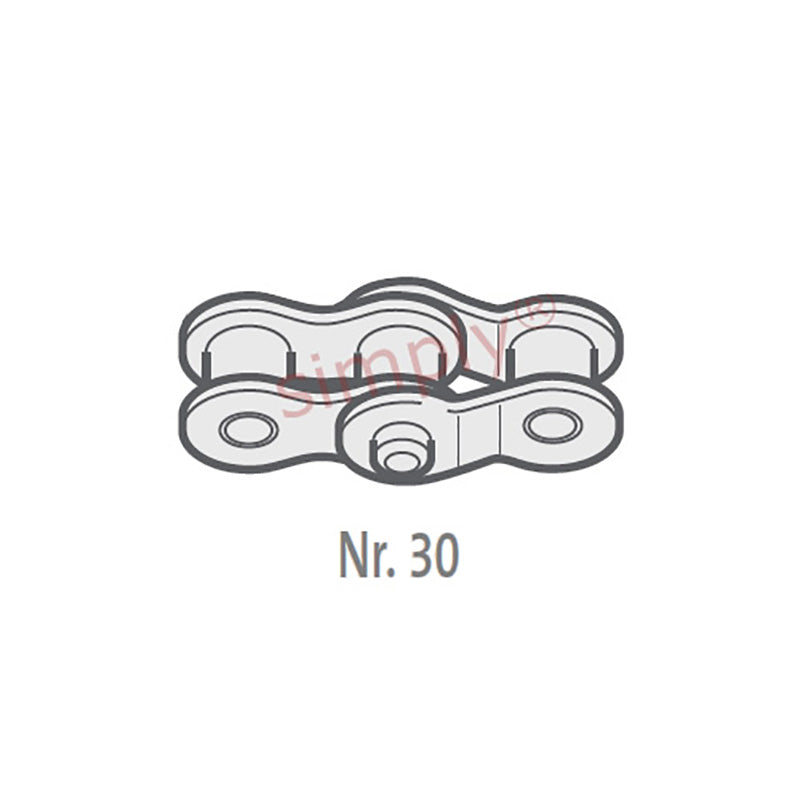

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 13.2mm |
| Connecting Link Extension max (J) | 1mm |
| ISO606 Tensile Strength min | 8900 N |
| Weight | 0.04kg/m |
