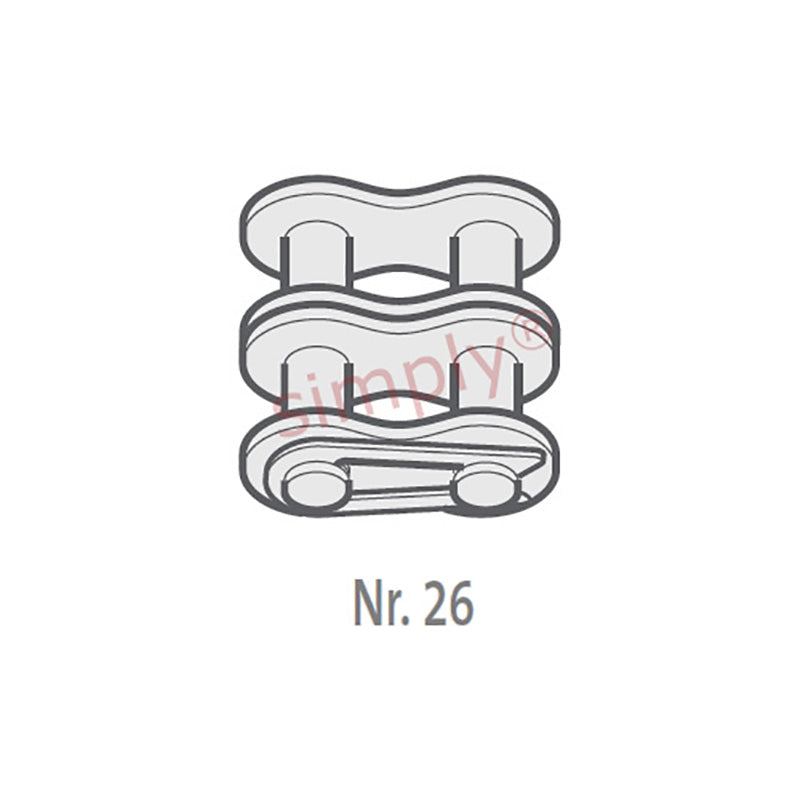

• Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
  • Renold
1 2

SKU: 06B-2-BB-NO26-RENOLD

Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch

Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
$11.48 ex VAT
$11.48 ex VAT
Sale Sold out

In stock

Price Break
2+ $7.69
5+ $7.26
10+ $7.17
29+ $7.08
49+ $7.00
75+ $6.91
100+ $6.48
200+ $6.39
250+ $6.31
500+ $6.22
1000+ $6.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (A) 0.375 inch
Pitch (A) 9.525mm
Inside Width min (B) 5.72mm
Roller Diameter max (C) 6.35mm
Plate Height max (D) 8.2mm
Plate Width Inner max (E) 1.29mm
Plate Width Outer max (F) 1.04mm
Pin Diameter max (G) 3.28mm
Pin Length max (H1) 23mm
Connecting Link Extension max (J) 1.3mm
ISO606 Tensile Strength min 16900 N
Weight 0.002kg/m
