• Renold Blue Box 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch
  • Renold
1 2

SKU: 06B-2-BB-NO30-RENOLD

Renold Blue Box 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch

Renold Blue Box 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch
$17.35 ex VAT
$17.35 ex VAT
Sale Sold out

In stock

Price Break
2+ $11.62
5+ $10.97
10+ $10.84
29+ $10.71
49+ $10.57
75+ $10.44
100+ $9.79
200+ $9.66
250+ $9.53
500+ $9.40
1000+ $9.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

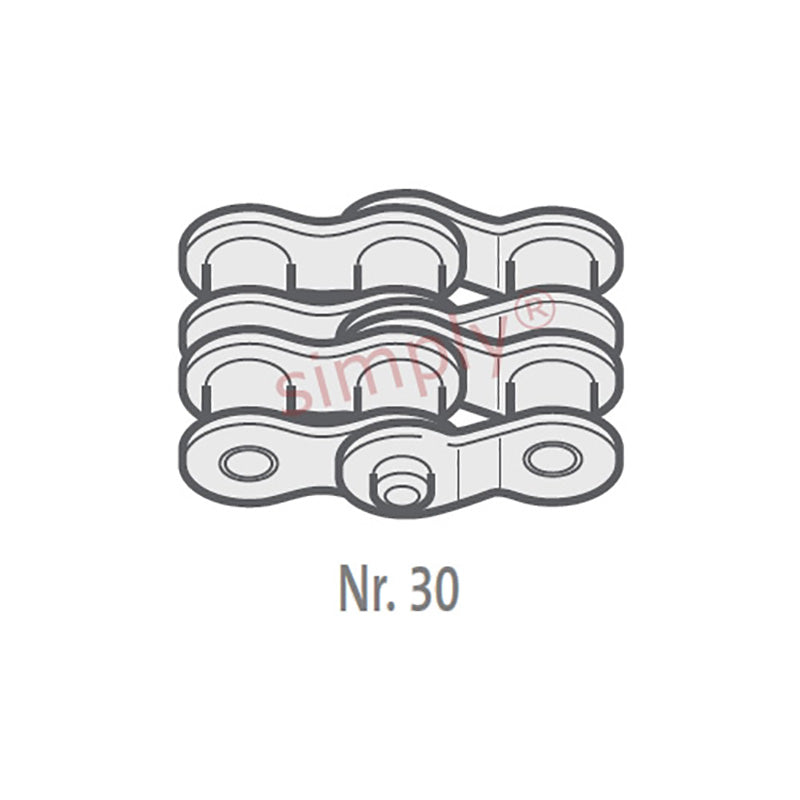

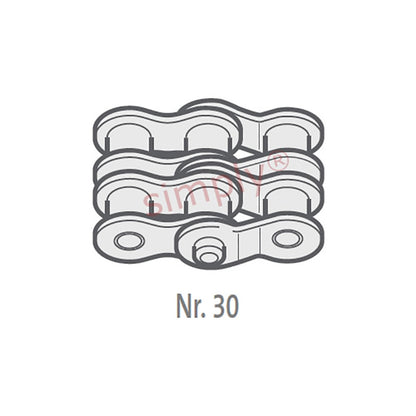

Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Brand / Quality:
Renold - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (A) 0.375 inch
Pitch (A) 9.525mm
Inside Width min (B) 5.72mm
Roller Diameter max (C) 6.35mm
Plate Height max (D) 8.2mm
Plate Width Inner max (E) 1.29mm
Plate Width Outer max (F) 1.04mm
Pin Diameter max (G) 3.28mm
Pin Length max (H1) 23mm
Connecting Link Extension max (J) 1.3mm
ISO606 Tensile Strength min 16900 N
Weight 0.004kg/m
