SKU: 06B-2-NO30-MB
Major Brand 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch
Major Brand 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
$7.31
ex VAT
Regular price
Sale price
$7.31
ex VAT
Equivalent to: 06B-2-DOL
In stock
Price Break
2+
$4.90
5+
$4.62
10+
$4.57
29+
$4.51
49+
$4.46
75+
$4.40
100+
$4.13
200+
$4.07
250+
$4.02
500+
$3.96
1000+
$3.85
Quantity
Couldn't load pickup availability
Description
Description

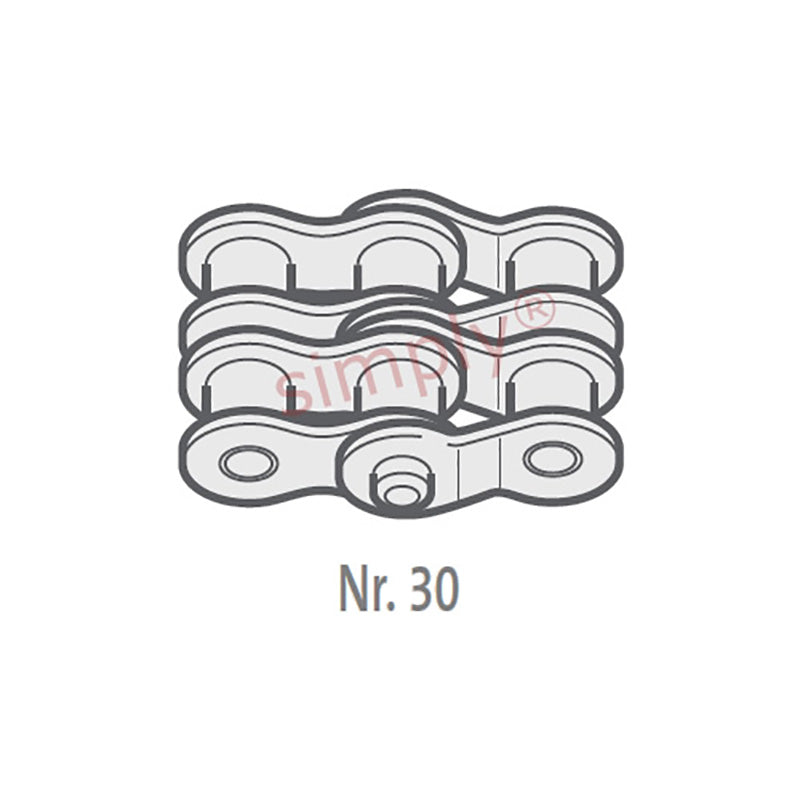

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H2) | 23.5mm |
| Connecting Link Extension max (J) | 1mm |
| Transverse Pitch nom (K) | 10.24mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.004kg/m |
