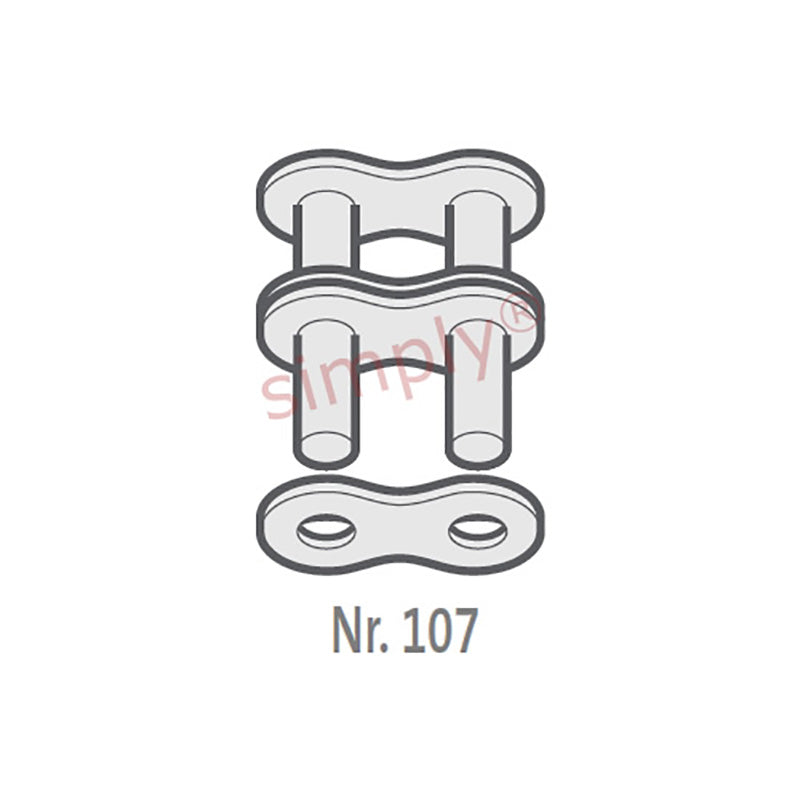

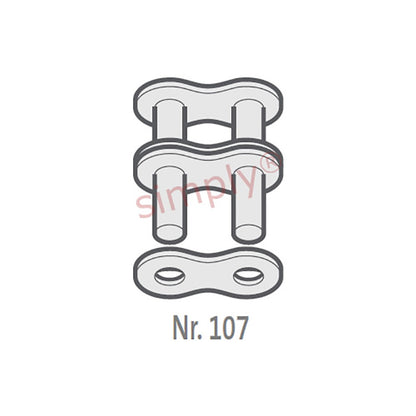

• Renold Synergy 06B-2-NO107 BS Duplex Chain Outer Link To Be Riveted 3/8 inch Pitch
  • Renold
1 2

SKU: 06B-2-SYN-NO107-RENOLD

Renold Synergy 06B-2-NO107 BS Duplex Chain Outer Link To Be Riveted 3/8 inch Pitch

Renold Synergy 06B-2-NO107 BS Duplex Chain Outer Link To Be Riveted 3/8 inch Pitch
$22.48 ex VAT
$22.48 ex VAT
Sale Sold out

In stock

Price Break
2+ $15.06
5+ $14.21
10+ $14.04
29+ $13.87
49+ $13.71
75+ $13.54
100+ $12.69
200+ $12.52
250+ $12.35
500+ $12.18
1000+ $11.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (A) 0.375 inch
Pitch (A) 9.525mm
Inside Width min (B) 5.72mm
Roller Diameter max (C) 6.35mm
Plate Height max (D) 8.2mm
Plate Width Inner max (E) 1.29mm
Plate Width Outer max (F) 1.04mm
Pin Diameter max (G) 3.28mm
Pin Length max (H2) 23mm
Connecting Link Extension max (J) 1.3mm
Transverse Pitch nom (K) 10.24mm
ISO606 Tensile Strength min 16900 N
Weight 0.002kg/m
