SKU: 06B-3-BB-NO30-RENOLD
Renold Blue Box 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $27.54 ex VAT
- Sale price
- $27.54
- Regular price
-
In stock
Quantity Price Breaks
2
$24.51
5
$23.13
10
$22.86
29
$22.58
49
$22.31
75
$22.03
100
$20.66
200
$20.38
250
$20.10
500
$19.83
1000
$19.28
SKU:
06B-3-BB-NO30-RENOLD
Renold Blue Box 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $27.54 ex VAT
- Sale price
- $27.54
- Regular price
-
Description

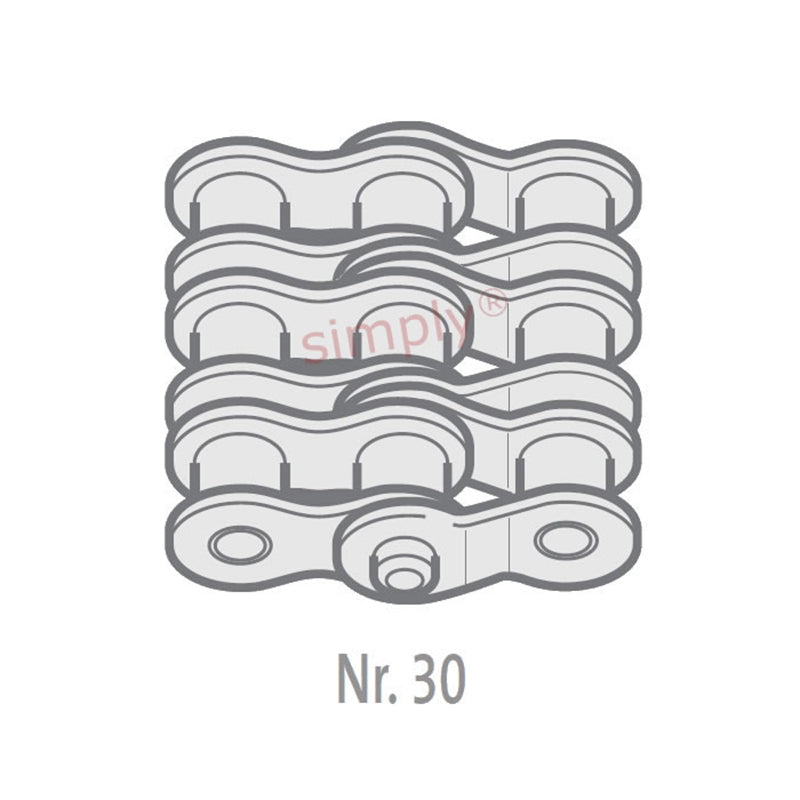

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H2) | = | 33.3mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 10.24mm |
| ISO606 Tensile Strength min | = | 24900 N |
| Weight | = | 0.004kg/m |
