SKU: 06B-3-NO30-MB
Major Brand 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $8.92 ex VAT
- Sale price
- $8.92
- Regular price
-
In stock
Quantity Price Breaks
2
$7.94
5
$7.49
10
$7.40
29
$7.31
49
$7.23
75
$7.14
100
$6.69
200
$6.60
250
$6.51
500
$6.42
1000
$6.24
SKU:
06B-3-NO30-MB
Major Brand 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $8.92 ex VAT
- Sale price
- $8.92
- Regular price
-
Description

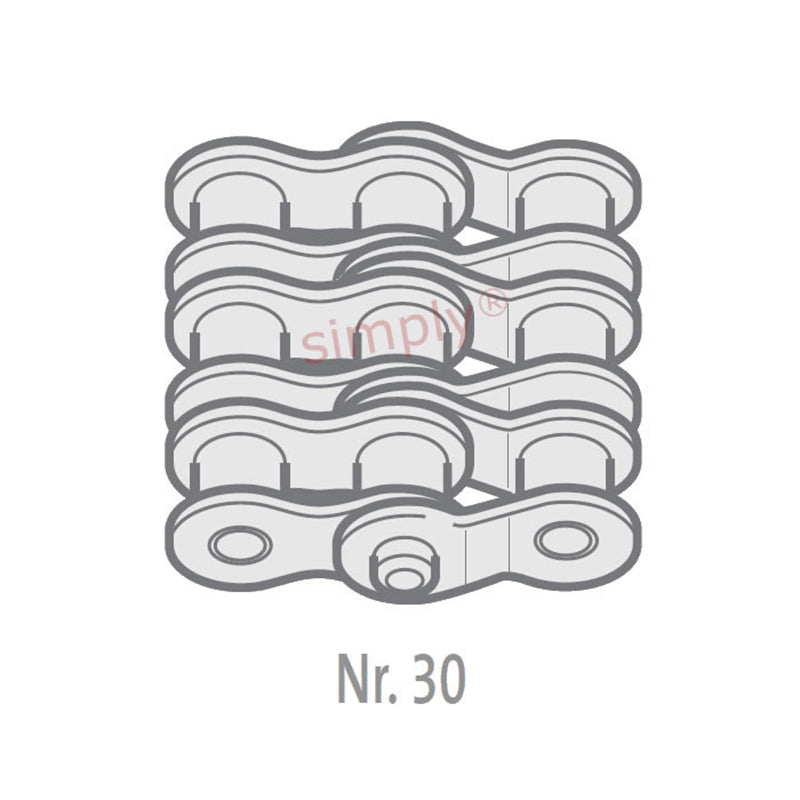

Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.25mm |
| Plate Width Outer max (F) | = | 1mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H3) | = | 35.6mm |
| Connecting Link Extension max (J) | = | 3mm |
| ISO606 Tensile Strength min | = | 26250 N |
| Weight | = | 0.003kg/m |
