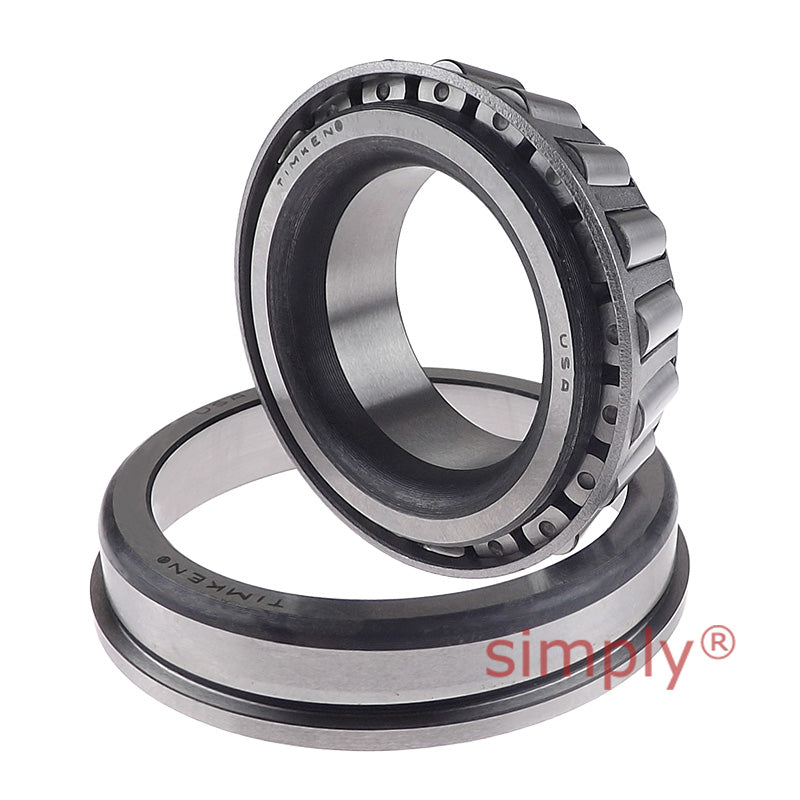

• Timken 07079/07204B TSF Single-Row Taper Roller Bearing 0.7874x2.047x0.591 inch
  • Timken
1 2

SKU: 07079/07204B-TIM

Timken 07079/07204B TSF Single-Row Taper Roller Bearing 0.7874x2.047x0.591 inch

Timken 07079/07204B TSF Single-Row Taper Roller Bearing 0.7874x2.047x0.591 inch
$115.72 ex VAT
$115.72 ex VAT
Sale Sold out

In stock

Price Break
10+ $77.51
20+ $73.15
30+ $72.28
40+ $71.41
50+ $70.54
75+ $69.67
100+ $65.32
200+ $64.44
250+ $63.57
500+ $62.70
1000+ $60.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
20mm = 0.787 inch
Outside Diameter:
51.99mm = 2.047 (2-3/64) inch
Width:
15.01mm = 0.591 inch
Technical
d 20mm = 0.7874 inch
D 51.994mm = 2.047 inch
T1 5.08mm = 0.2 inch
Dynamic (1) C1 27000N
Factors (5) e 0.4
Factors (5) Y 1.49
Dynamic (2) C90 6990N
Dynamic (2) Ca90 4810N
Factors (5) K 1.45
Static Co 29600N
Bearing B 14.26mm = 0.5614 inch
Bearing C 12.7mm = 0.5 inch
Bearing a(3) -2.8mm = -0.11 inch
Bearing D1 55.855mm = 2.199 inch
Bearing C2 2.769mm = 0.109 inch
Shaft max shaft fillet radius R(4) 1.5mm = 0.06 inch
Shaft backing shoulder diameter da 26mm = 1.02 inch
Shaft backing shoulder diameter db 27.5mm = 1.08 inch
Housing backing shoulder diameter Da 50mm = 1.97 inch
G1 7.6
G2 7.07
Cg 0.0509
