SKU: 070ASPB1-ALUM

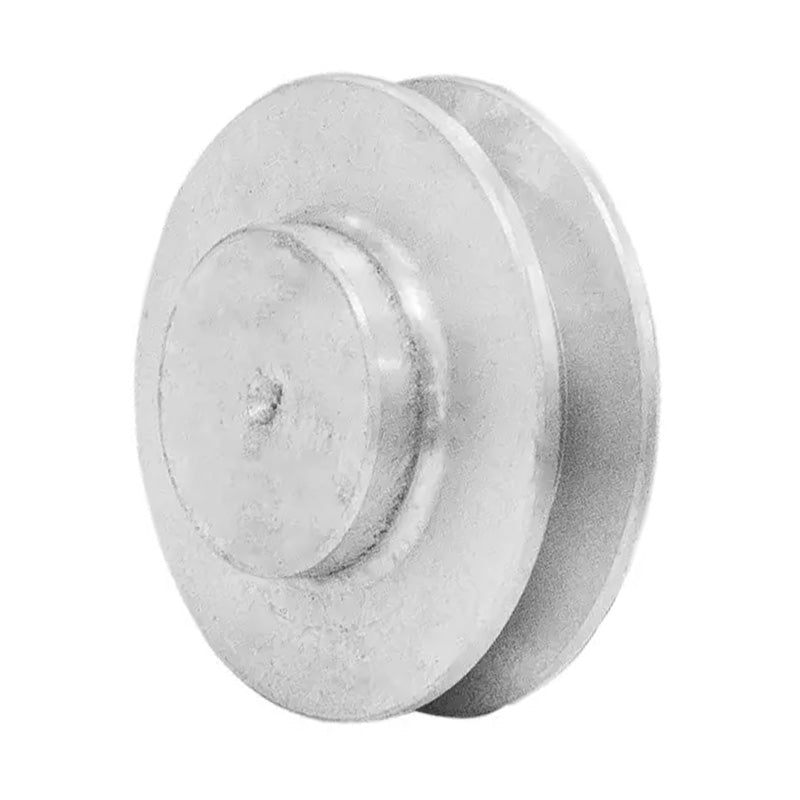

SPB Section Un-Bored Aluminium Pulley with 1 Groove 70mm Pitch Diameter - Allow 2-3 Days
SPB Section Un-Bored Aluminium Pulley with 1 Groove 70mm Pitch Diameter - Allow 2-3 Days
Out of stock
Share this product
Description
Description
SPB Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.
- Brand / Quality:
- Major Brand - High Quality
- Grooves:
- 1
- Outside Diameter:
- 79mm
- Pitch Diameter:
- 70mm
Technical
Technical

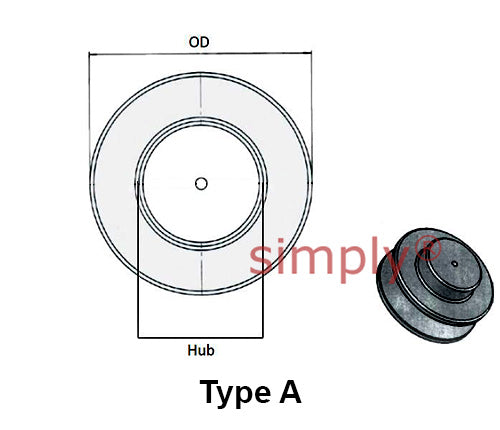

| Number of Grooves | 1 |
|---|---|
| Outer Diameter | 79mm |
| Pitch | 70mm |
| Hub Diameter | 44mm |
| Hub Width | 39mm |
| Weight | 0.305kg |
