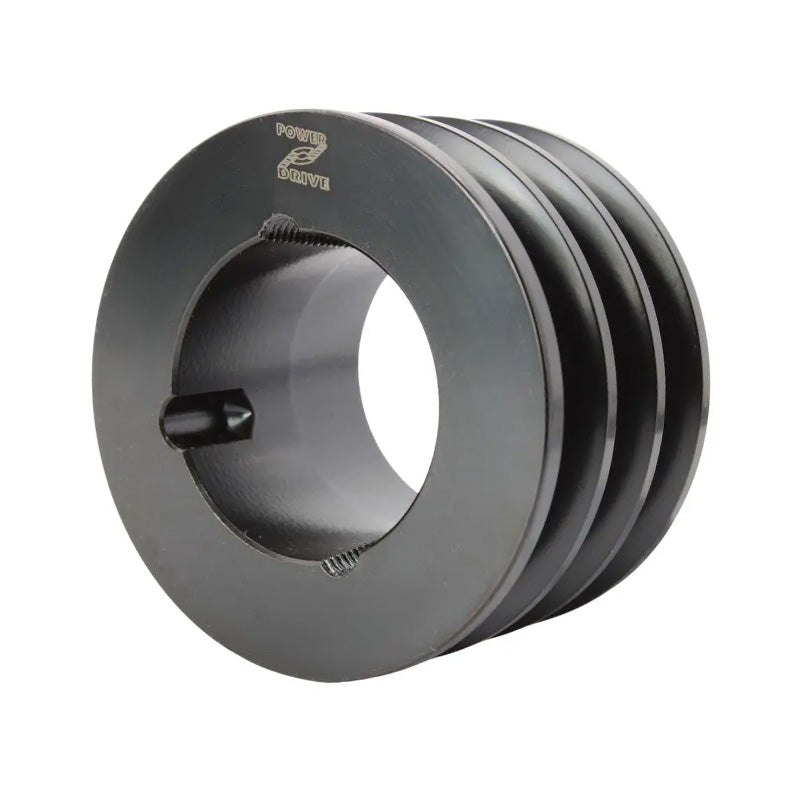

• 71X3SPA 71mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 71X3SPA 71mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 071SPA3-MB

71X3SPA 71mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

71X3SPA 71mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$22.47 ex VAT
$22.47 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.05
5+ $14.21
9+ $14.04
19+ $13.87
49+ $13.70
74+ $13.53
99+ $12.68
199+ $12.51
249+ $12.35
499+ $12.18
999+ $11.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
77.2mm
Pitch Diameter:
71mm
Max Bore:
28mm
Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1108+tapered+locking+bush">1108 Click Here</a>
Pitch Diameter B 71mm
Overall Outer Diameter C 77.2mm
Max Bore A 28mm
Overall Sheave Depth F 50mm
Bush Seat Length G 22mm
Inner Recess Diameter D 40mm
Inner Recess Length H 28mm
