• Branded Stainless Steel 08B-1 BS Simplex Roller Chain 25 Foot 1/2 Inch Pitch
1 1

SKU: 08B-1-25FT-SS

Branded Stainless Steel 08B-1 BS Simplex Roller Chain 25 Foot 1/2 Inch Pitch

Branded Stainless Steel 08B-1 BS Simplex Roller Chain 25 Foot 1/2 Inch Pitch
$333.33 ex VAT
$333.33 ex VAT
Sale Sold out

In stock

Price Break
10+ $223.28
19+ $210.73
29+ $208.22
39+ $205.71
49+ $203.21
74+ $200.70
99+ $188.15
199+ $185.64
249+ $183.14
499+ $180.63
999+ $175.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.

Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.

Brand / Quality:
Major Brand - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch

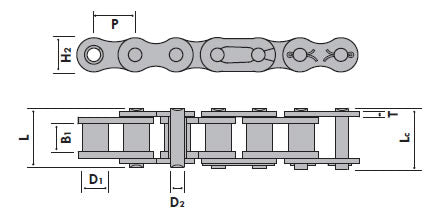

Technical
Pitch (P) 12.70mm = 1/2 inch
Roller Diameter (D1 max) 8.51mm
Width between inner plates (B1 min) 7.75mm
Pin dia meter (D2 max) 4.45mm
Pin length (L max) 16.7mm
Pin length (Lc max) 18.2mm
Inner plate depth (H2 max) 11.8mm
Plate thickness (T max) 1.6mm
Ultimate tensile strength (Q min) kN/LB 18.0/4091
Average tensile strength (Q0) kN 19.4
Weight per meter (q) kg/m 0.69
