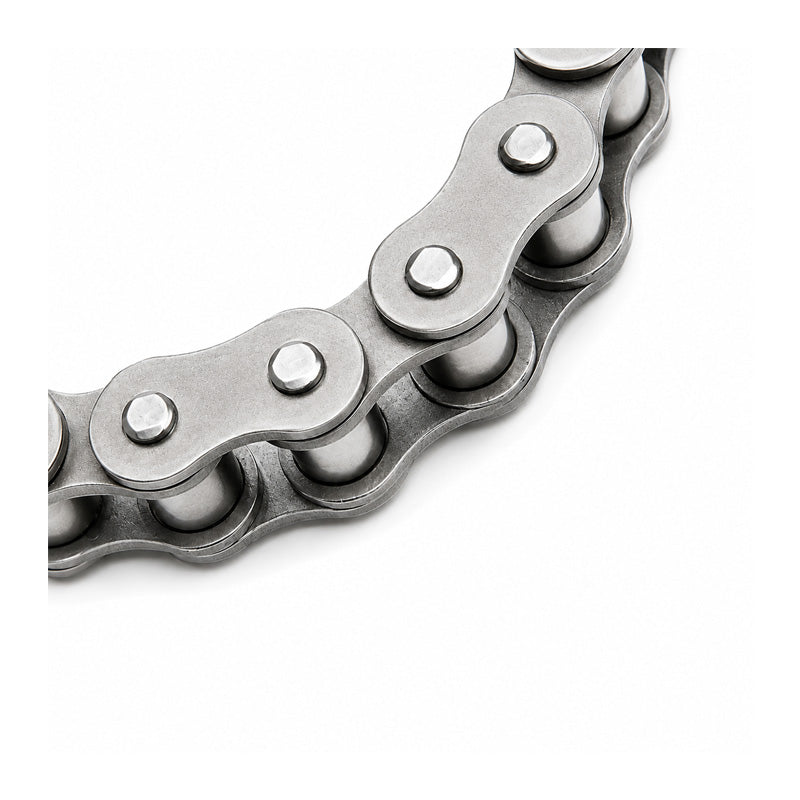

• Branded 08B-1 BS Simplex Roller Chain 1/2 inch Pitch 5 Metres
1 1

SKU: 08B-1-5MTR-MB

Branded 08B-1 BS Simplex Roller Chain 1/2 inch Pitch 5 Metres

Branded 08B-1 BS Simplex Roller Chain 1/2 inch Pitch 5 Metres
$49.71 ex VAT
$49.71 ex VAT
Sale Sold out

Equivalent to: 08B1

In stock

Price Break
2+ $33.30
5+ $31.43
10+ $31.05
29+ $30.68
49+ $30.30
75+ $29.93
100+ $28.06
200+ $27.69
250+ $27.31
500+ $26.94
1000+ $26.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (P) 12.7mm = 0.5 (1/2) inch
Roller Diameter (D1 max) 8.51mm
Width between inner plates (B1 min) 7.75mm
Pin dia meter (D2 max) 4.45mm
Pin length (L max) 16.7mm
Pin length (Lc max) 18.2mm
Inner plate depth (H2 max) 11.8mm
Plate thickness (T max) 1.6mm
Ultimate tensile strength (Q min) kN/LB 18.0/4091
Average tensile strength (Q0) kN 19.4
Weight per meter (q) kg/m 0.69
