SKU: 08B-1-BB-NO30-RENOLD
Renold Blue Box 08B-1-NO30 BS Simplex Double Cranked Link 1/2 inch Pitch
- Regular price
- $12.10 ex VAT
- Sale price
- $12.10
- Regular price
-
In stock
Quantity Price Breaks
2
$10.77
5
$10.16
10
$10.04
29
$9.92
49
$9.80
75
$9.68
100
$9.08
200
$8.95
250
$8.83
500
$8.71
1000
$8.47
SKU:
08B-1-BB-NO30-RENOLD
Renold Blue Box 08B-1-NO30 BS Simplex Double Cranked Link 1/2 inch Pitch
- Regular price
- $12.10 ex VAT
- Sale price
- $12.10
- Regular price
-
Description

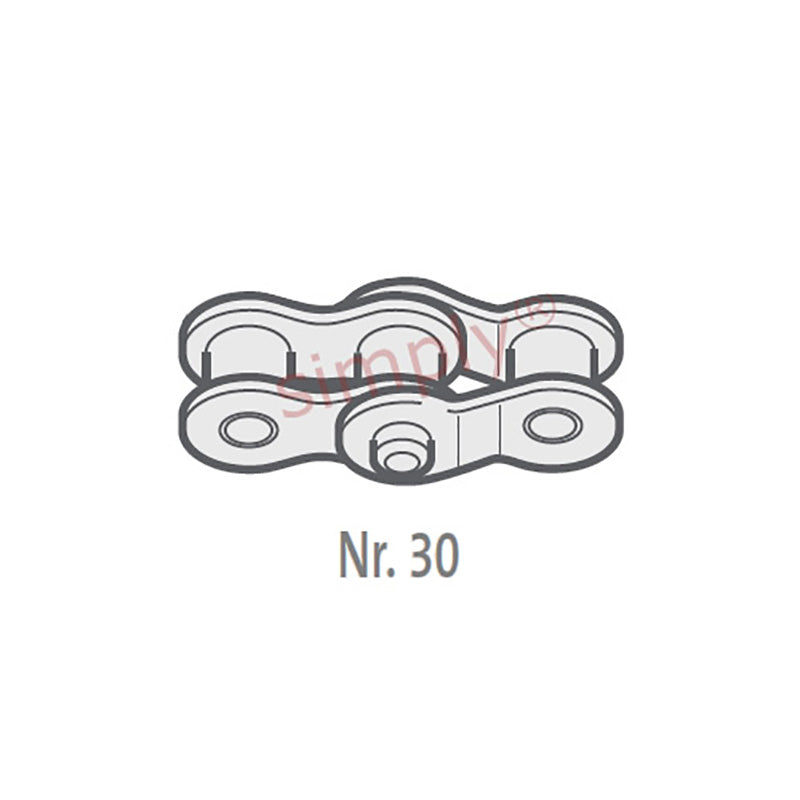

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.5mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.003kg/m |
