SKU: 08B-1-NO30-MB

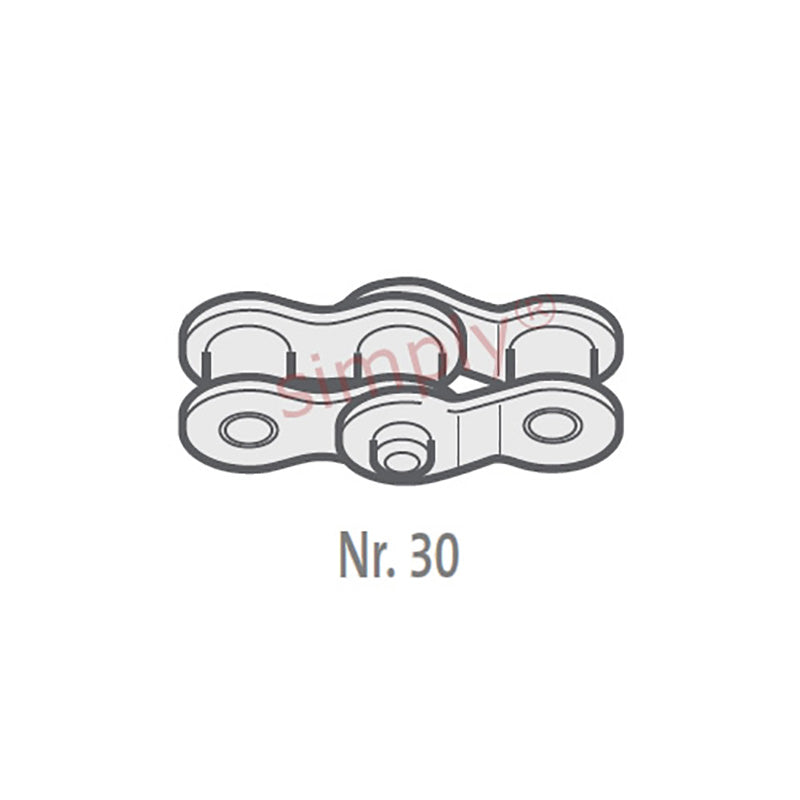

Branded 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
Branded 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
$6.13
ex VAT
Regular price
Sale price
$6.13
ex VAT
Equivalent to: 08B-1-DOL
In stock
Price Break
2+
$4.10
5+
$3.87
10+
$3.82
29+
$3.78
49+
$3.73
75+
$3.69
100+
$3.46
200+
$3.41
250+
$3.36
500+
$3.32
1000+
$3.23
Quantity
Couldn't load pickup availability
Description
Description
Branded DOL / No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.8mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H1) | 16.7mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 17800 N |
| Weight | 0.003kg/m |
