• Renold Blue Box 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
  • Renold
1 2

SKU: 08B-2-BB-NO30-RENOLD

Renold Blue Box 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch

Renold Blue Box 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
$20.82 ex VAT
$20.82 ex VAT
Sale Sold out

In stock

Price Break
2+ $13.94
5+ $13.16
10+ $13.00
29+ $12.85
49+ $12.69
75+ $12.53
100+ $11.75
200+ $11.59
250+ $11.44
500+ $11.28
1000+ $10.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

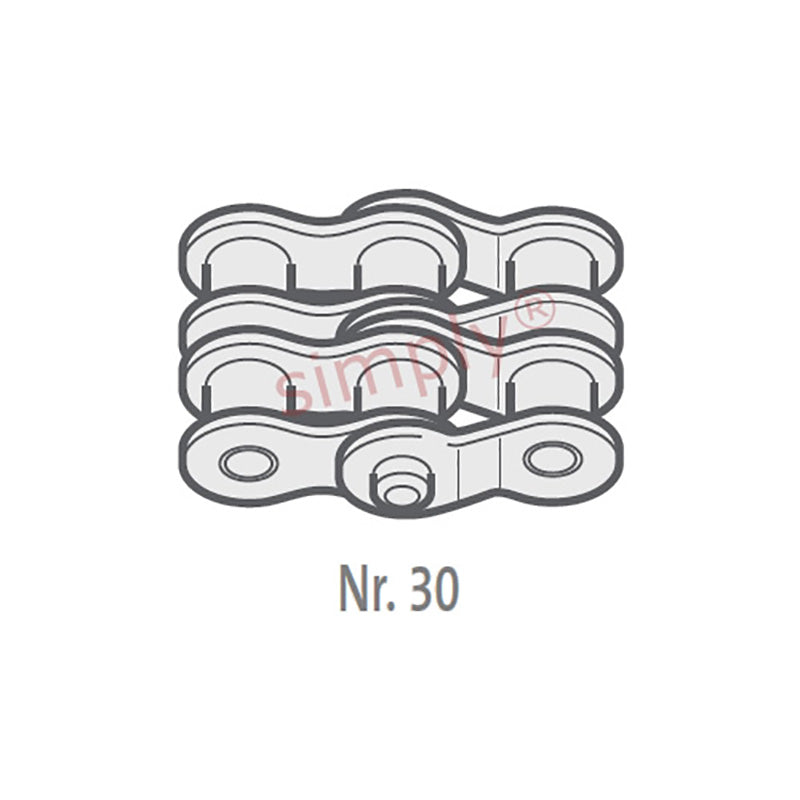

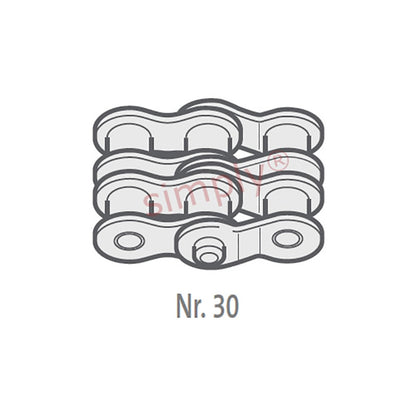

Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.75mm
Roller Diameter max (C) 8.51mm
Plate Height max (D) 11.7mm
Plate Width Inner max (E) 1.55mm
Plate Width Outer max (F) 1.55mm
Pin Diameter max (G) 4.45mm
Pin Length max (H1) 30.4mm
Connecting Link Extension max (J) 2mm
ISO606 Tensile Strength min 31100 N
Weight 0.006kg/m
