SKU: 08B-3-SYN-NO30-RENOLD
Renold Synergy 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $66.97 ex VAT
- Sale price
- $66.97
- Regular price
-
Not in stock
Quantity Price Breaks
2
$59.60
5
$56.25
10
$55.59
29
$54.92
49
$54.25
75
$53.58
100
$50.23
200
$49.56
250
$48.89
500
$48.22
1000
$46.88
SKU:
08B-3-SYN-NO30-RENOLD
Renold Synergy 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $66.97 ex VAT
- Sale price
- $66.97
- Regular price
-
Description

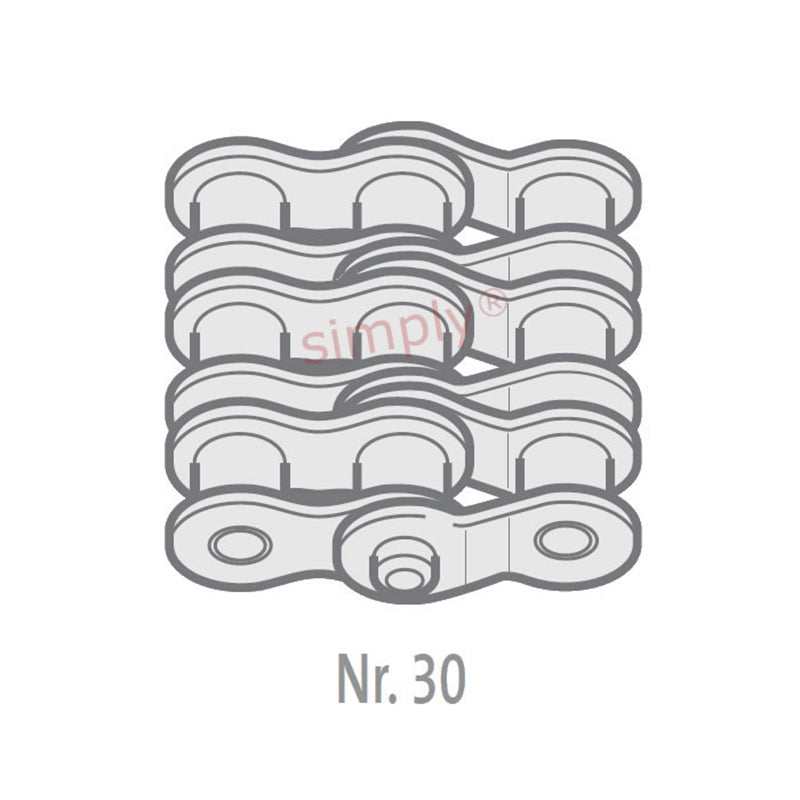

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.006kg/m |
