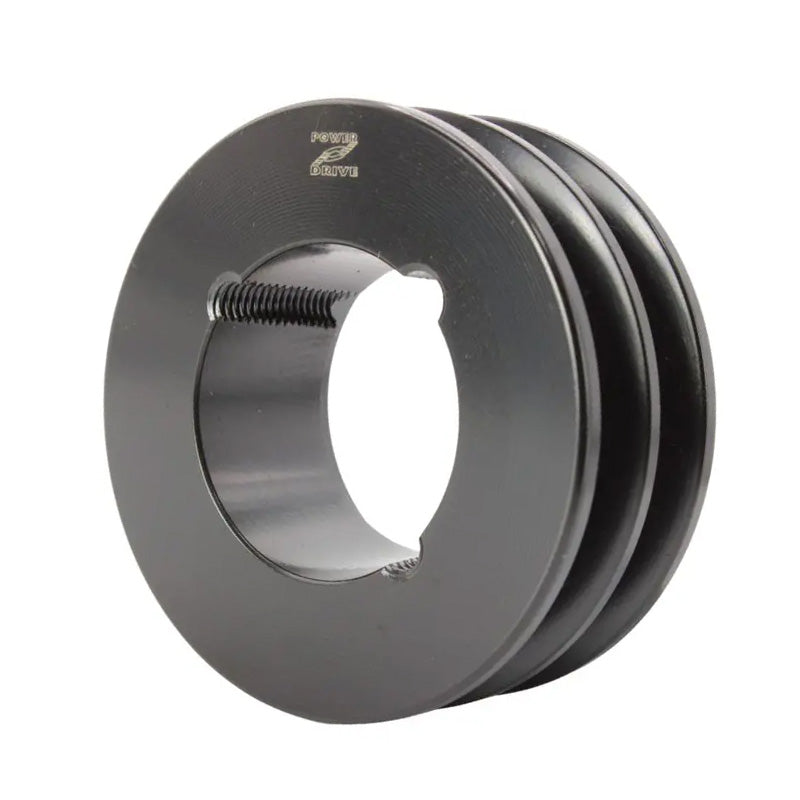

• 90X2SPZ 90mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 1

SKU: 090SPZ2-MB

90X2SPZ 90mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

90X2SPZ 90mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$15.23 ex VAT
$15.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.20
5+ $9.63
9+ $9.51
19+ $9.40
49+ $9.28
74+ $9.17
99+ $8.59
199+ $8.48
249+ $8.37
499+ $8.25
999+ $8.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
94.6mm
Pitch Diameter:
90mm
Max Bore:
42mm

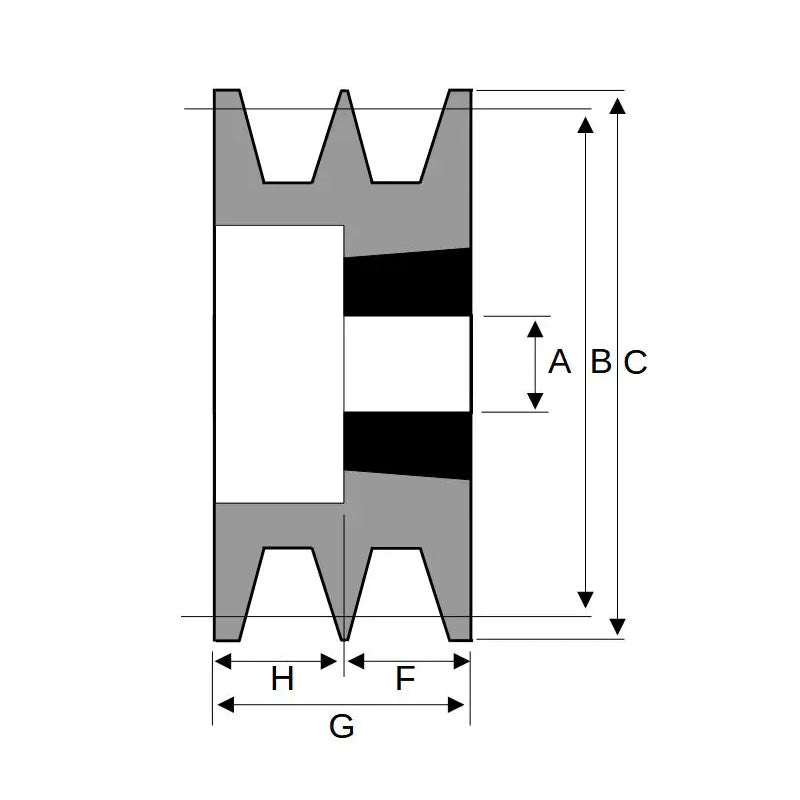

Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 90mm
Overall Outer Diameter C 94.6mm
Max Bore A 42mm
Overall Sheave Depth F 28mm
Bush Seat Length G 28mm
Inner Recess Diameter D 61mm
Inner Recess Length H 3mm
