• 90X5SPZ 90mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 090SPZ5-MB

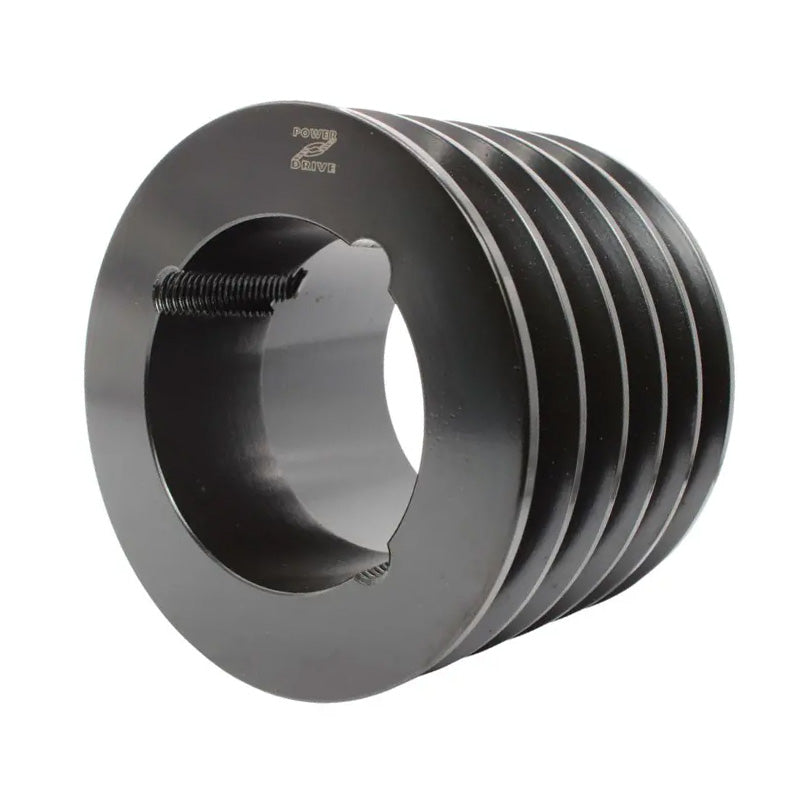

90X5SPZ 90mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

90X5SPZ 90mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$20.69 ex VAT
$20.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.86
5+ $13.08
9+ $12.93
19+ $12.77
49+ $12.61
74+ $12.46
99+ $11.68
199+ $11.52
249+ $11.37
499+ $11.21
999+ $10.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
94.6mm
Pitch Diameter:
90mm
Max Bore:
42mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 90mm
Overall Outer Diameter C 94.6mm
Max Bore A 42mm
Overall Sheave Depth F 64mm
Bush Seat Length G 25mm
Inner Recess Diameter D 61mm
Inner Recess Length H 39mm
