SKU: 0SS316-JUB

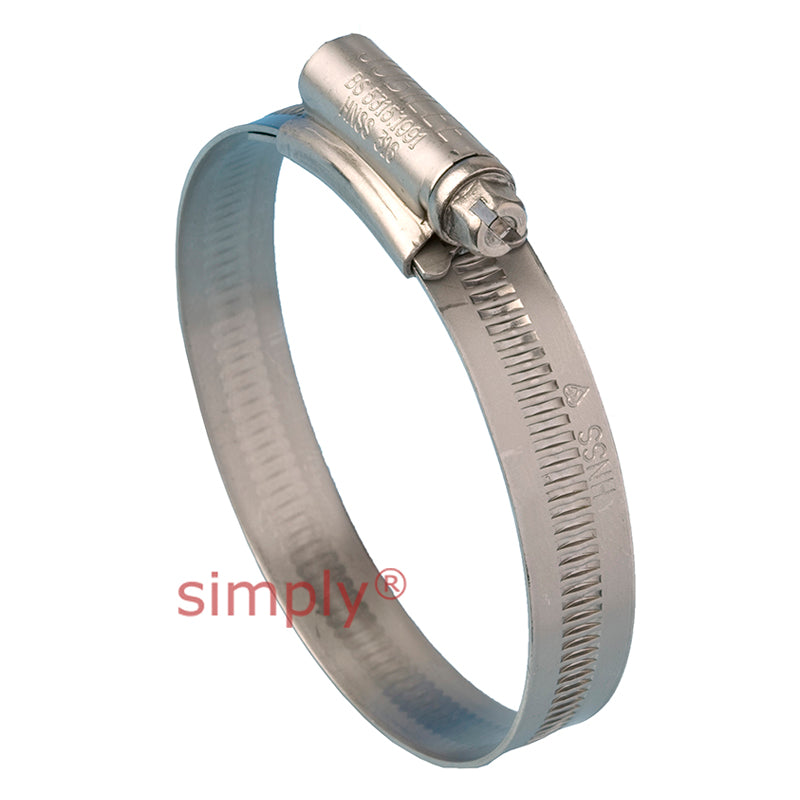

0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm
- Regular price
- $7.11 ex VAT
- Sale price
- $7.11
- Regular price
-
In stock
Quantity Price Breaks
3
$6.33
5
$5.97
9
$5.90
19
$5.83
49
$5.76
74
$5.69
99
$5.33
199
$5.26
249
$5.19
499
$5.12
999
$4.98
SKU:
0SS316-JUB
0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm
- Regular price
- $7.11 ex VAT
- Sale price
- $7.11
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 22 |
| Adjustment Range | = | 16mm - 22mm |
| Adjustment Range | = | 5/8 - 7/8 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 4.2Nm |
| Maximum Torque | = | 5.6Nm |
| Maximum Pressure | = | 203 Psi |
