SKU: 0XSS316-JUB

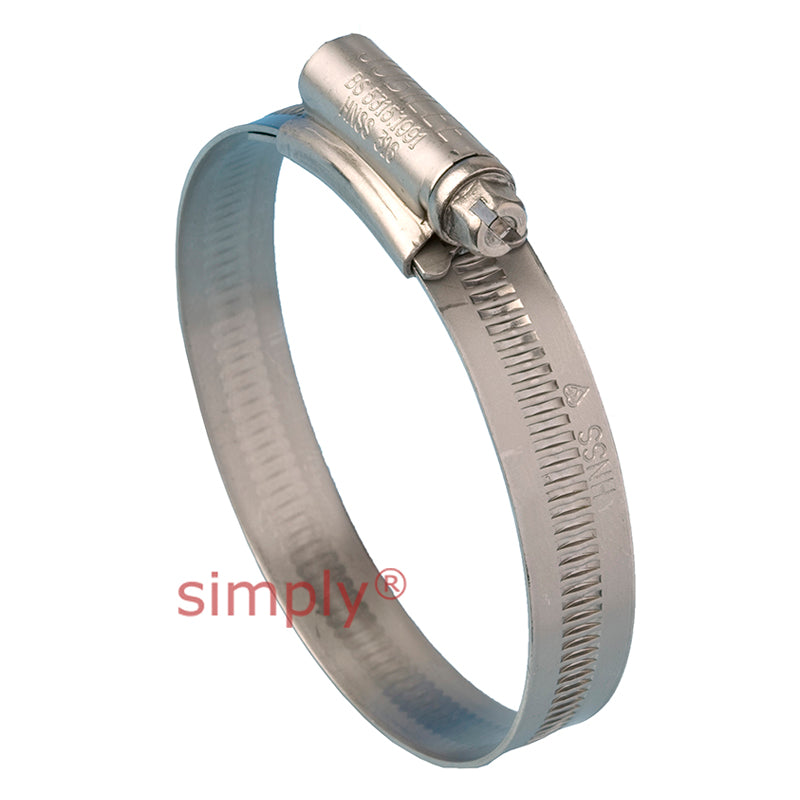

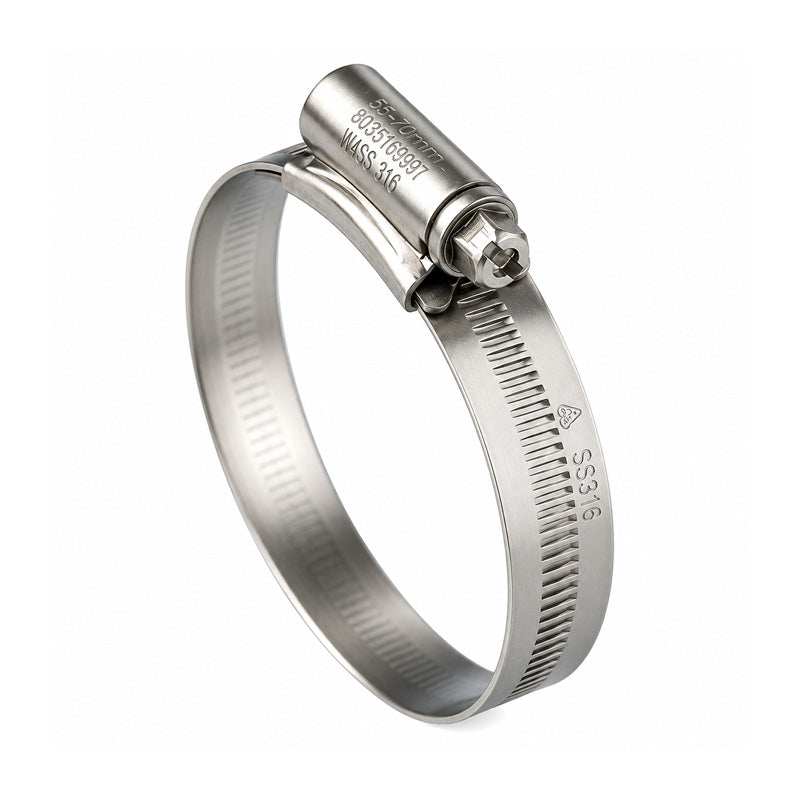

0XSS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 18mm - 25mm Band Width 13mm
- Regular price
- $7.19 ex VAT
- Sale price
- $7.19
- Regular price
-
Not in stock
Quantity Price Breaks
3
$6.40
5
$6.04
9
$5.97
19
$5.90
49
$5.82
74
$5.75
99
$5.39
199
$5.32
249
$5.25
499
$5.18
999
$5.03
SKU:
0XSS316-JUB
0XSS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 18mm - 25mm Band Width 13mm
- Regular price
- $7.19 ex VAT
- Sale price
- $7.19
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 25 |
| Adjustment Range | = | 18mm - 25mm |
| Adjustment Range | = | 3/4 - 1 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 4.2Nm |
| Maximum Torque | = | 5.6Nm |
| Maximum Pressure | = | 203 Psi |
