SKU: 10.5SS316-JUB

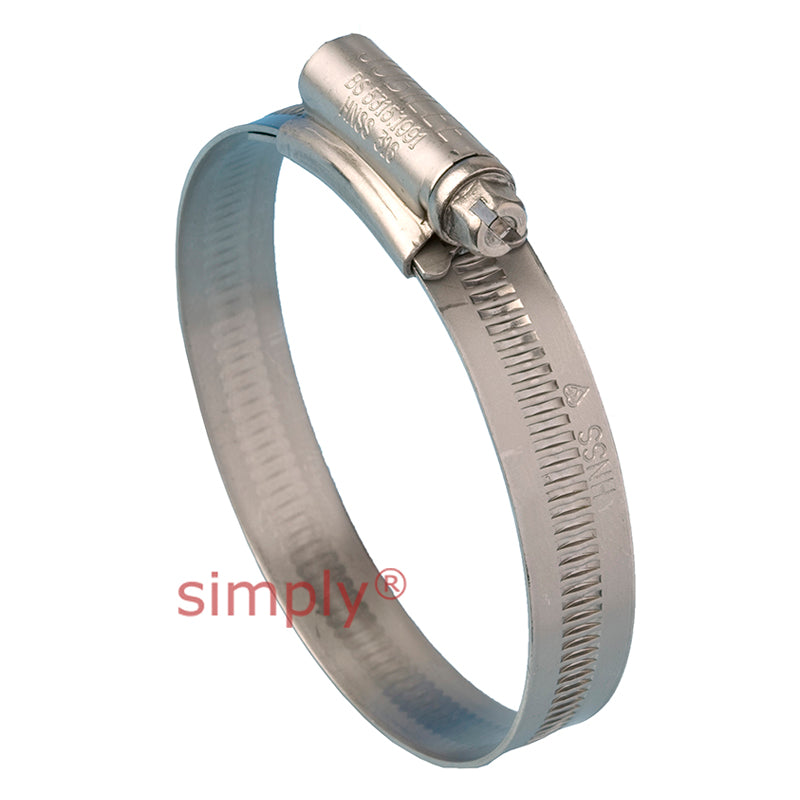

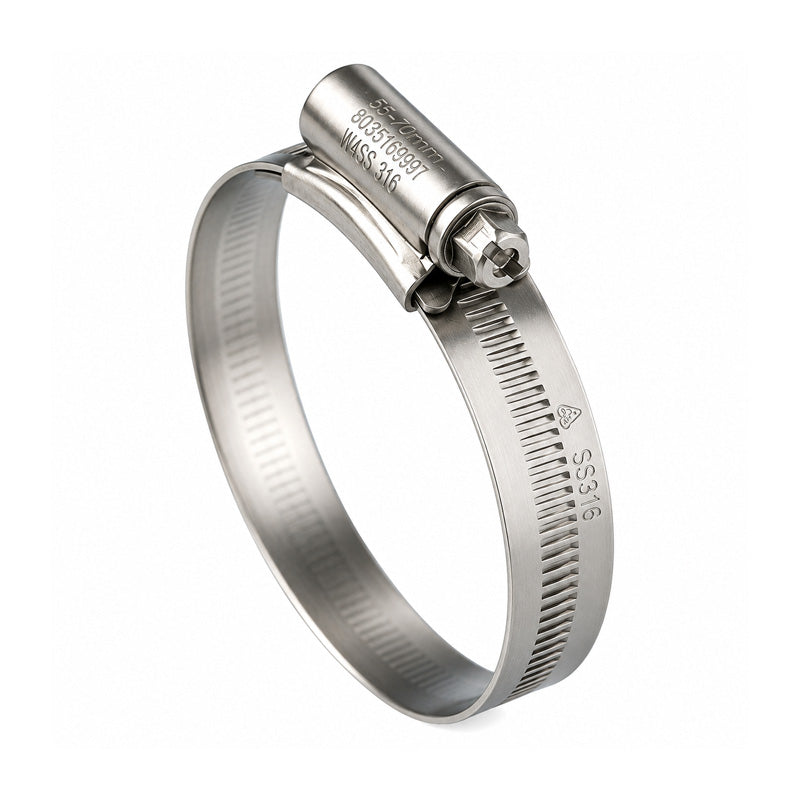

10.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 235mm - 267mm Band Width 13mm
- Regular price
- $16.04 ex VAT
- Sale price
- $16.04
- Regular price
-
Not in stock
Quantity Price Breaks
3
$14.28
5
$13.47
9
$13.31
19
$13.15
49
$12.99
74
$12.83
99
$12.03
199
$11.87
249
$11.71
499
$11.55
999
$11.23
SKU:
10.5SS316-JUB
10.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 235mm - 267mm Band Width 13mm
- Regular price
- $16.04 ex VAT
- Sale price
- $16.04
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 267 |
| Adjustment Range | = | 235mm - 267mm |
| Adjustment Range | = | 9-1/4 - 10-1/2 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 5.9Nm |
| Maximum Torque | = | 7.9Nm |
| Maximum Pressure | = | 18 Psi |
